Wiha Digital Multimeter up to 1.000V
5062 Kč
4183 Kč bez DPH
Dostupnost: Skladem, dodání 2-4 dní
Part no.: SB25542
Kód produktu: 97355062
Výrobce: Wiha
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Typ baterie / aku: AAA (Micro)
Potřebný počet: 2
Displej: LCD
Typ ochrany: IP40
Napětí (V): 0 - 1000
Odpor (Ohm): 200000000
Frekvence (Hz): 60000000
Typ měření: True RMS
Typ: Multimetr
Barva: Červená / žlutá
Materiál: Plast
Délka (mm): 150
Hmotnost (g): 653

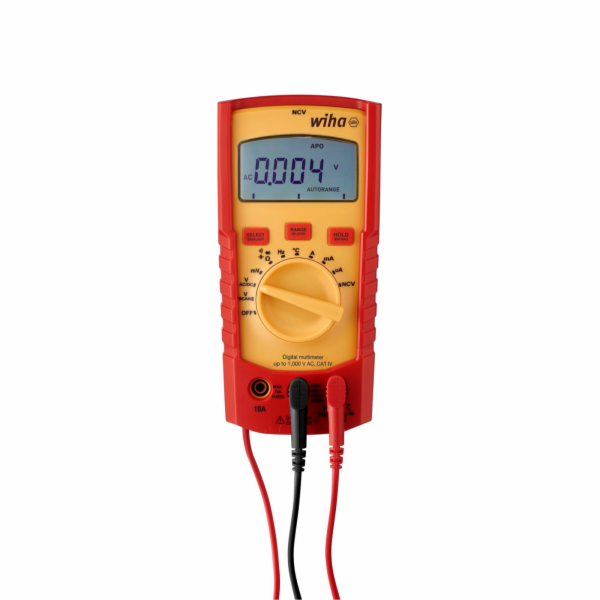

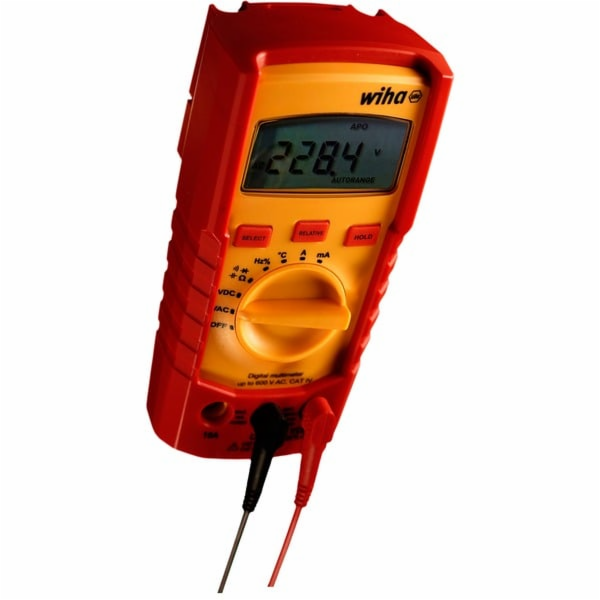

Wiha digital multimeter up to 1,000 V AC, CAT IV
The digital multimeter from Wiha is a versatile tool for various measuring tasks. You can use it to measure voltage, current, resistance, frequency, capacity and temperature. You can also test continuity and diodes. The measured values are displayed on a large LCD display with background light and data hold function. So you can read them at any time and also after measuring. An additional bargraph display shows you changes quickly and clearly. An acoustic signal confirms the current flow during the continuity test. The automatic measuring range selection saves you the manual setting of specific measuring ranges. The measurement of TRUE-RMS values makes it easier for you to apply the measurement results. Storing previous readings and comparing them with future readings gives you various control options.
Features:
Digital multimeter up to 1,000 V AC, CAT IV
True RMS function
Large LCD display with bargraph, backlit
Signal tone
Automatic measuring range setting + manual measuring range selection
Storage of measured values, relative value measurement
Voltage AC min - max: 0 - 1000 V
Voltage DC min - max: 0 - 1000 V
Resistance: 200 M?
Frequency: 60 MHz
Pollution level: 2
Data Hold
Battery level indicator
Measurement category: CAT IV 600 V / CAT III 1,000 V
Display: 6,000 digits
Fuse: F 600 mA / 1,000 V ceramic 6.3 x 32 and F 10 A / 1,000 V ceramic 6.3 x 32
Temperature measurement: -200°C to 1,350°C
Diode test: Up to 2V
Operating temperature: 0°C - 50 °C
Storage temperature: -10°C - 60 °C
Altitude above sea level: 2000 m
Protection class: IP40
Power supply: 2x AAA batteries (included)
Total length: 150 mm
Dimensions: 150 x 80 x 45 mm
Application: For multifunctional use in various locations.
Tested according to EN 61010-1, EN 61010-2-033, EN 61010-031, CAT III 1000V / CAT IV 600V
Popis produktu
Způsob provozu: BaterieTyp baterie / aku: AAA (Micro)
Potřebný počet: 2
Displej: LCD
Typ ochrany: IP40
Napětí (V): 0 - 1000
Odpor (Ohm): 200000000
Frekvence (Hz): 60000000
Typ měření: True RMS
Typ: Multimetr
Barva: Červená / žlutá
Materiál: Plast
Délka (mm): 150
Hmotnost (g): 653
Wiha digital multimeter up to 1,000 V AC, CAT IV
The digital multimeter from Wiha is a versatile tool for various measuring tasks. You can use it to measure voltage, current, resistance, frequency, capacity and temperature. You can also test continuity and diodes. The measured values are displayed on a large LCD display with background light and data hold function. So you can read them at any time and also after measuring. An additional bargraph display shows you changes quickly and clearly. An acoustic signal confirms the current flow during the continuity test. The automatic measuring range selection saves you the manual setting of specific measuring ranges. The measurement of TRUE-RMS values makes it easier for you to apply the measurement results. Storing previous readings and comparing them with future readings gives you various control options.
Features:
Digital multimeter up to 1,000 V AC, CAT IV
True RMS function
Large LCD display with bargraph, backlit
Signal tone
Automatic measuring range setting + manual measuring range selection
Storage of measured values, relative value measurement
Voltage AC min - max: 0 - 1000 V
Voltage DC min - max: 0 - 1000 V
Resistance: 200 M?
Frequency: 60 MHz
Pollution level: 2
Data Hold
Battery level indicator
Measurement category: CAT IV 600 V / CAT III 1,000 V
Display: 6,000 digits
Fuse: F 600 mA / 1,000 V ceramic 6.3 x 32 and F 10 A / 1,000 V ceramic 6.3 x 32
Temperature measurement: -200°C to 1,350°C
Diode test: Up to 2V
Operating temperature: 0°C - 50 °C
Storage temperature: -10°C - 60 °C
Altitude above sea level: 2000 m
Protection class: IP40
Power supply: 2x AAA batteries (included)
Total length: 150 mm
Dimensions: 150 x 80 x 45 mm
Application: For multifunctional use in various locations.
Tested according to EN 61010-1, EN 61010-2-033, EN 61010-031, CAT III 1000V / CAT IV 600V
