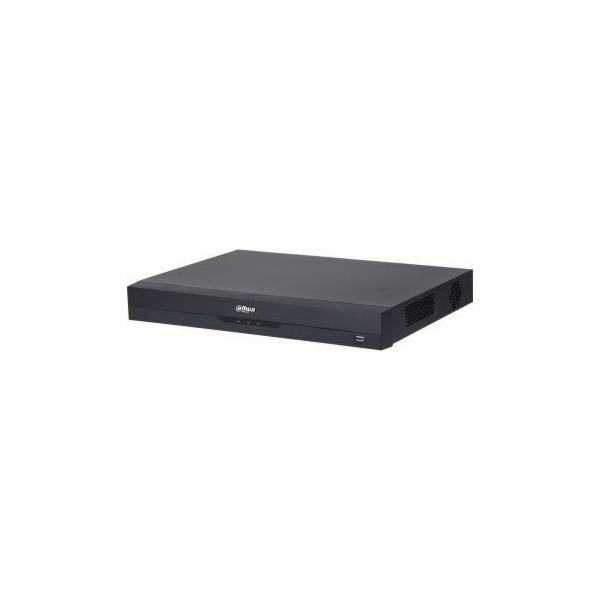

Dahua rekordér XVR5216A-4KL-I3
14672 Kč
12126 Kč bez DPH
Dostupnost: Skladem-dodání 2-4 dní
Part no.: XVR5216A-4KL-I3
Kód produktu: 102002551
Výrobce: DAHUA TECHNOLOGY
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
16 kanálů Penta-brid 4K-N/5MP 1U 2HDD
komprese videa s duálním streamem H.265+/H.265.
Podporuje full-channel AI-kódování.
Podporuje HDCVI/AHD/TVI/CVBS/IP video vstupy.
Max 32 kanálů vstupy IP kamery, každý kanál až 8MP; 128 Mb/s příchozí šířka pásma.
Až 8 kanálů video stream (analogový kanál) Ochrana perimetru.
Až 16 kanálů video stream (analogový kanál) SMD Plus.
Až 2 kanály video stream (analogový kanál)
IoT & POS funkce.
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel
Face Detection
Face Attributes
Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
2 channels (up to 12 face images/s each channel) )
Face Recognition
Face Database Capacity
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)
2 channels
SMD Plus
SMD Plus by Recorder
16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
Main stream:
4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps);
Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–6144 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
Third-party Camera Access
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
IOS; Android
Interoperability
ONVIF 21.12; CGI
Browser
Chrome, IE9 or later, Firefox
Network Mode
Single-address mode
Recording Playback
Record Mode
General, motion detection; intelligent; alarm; POS
Recording Playback
1/4/9/16
Backup Method
USB device and network
Playback Mode
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group
Yes
Alarm
General Alarm
Motion detection; video loss; tampering; local alarm
Anomaly Alarm
No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm
Face detection; face recognition; perimeter protection
Alarm Linkage
Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Ports
Audio Input
4-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Yes (share the same audio input with the first channel)
Alarm Input
16-channels
Alarm Output
3-channels
HDD Interface
2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485
1 port, for PTZ control
USB
2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI
1
VGA
1
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
DC 12V, 5A
Power Consumption
15 W (without HDD)
Net Weight
1.90 kg (4.20 lb)
Gross Weight
3.20 kg (7.00 lb)
Product Dimensions
375.0 mm × 289.4 mm × 53.0 mm (14.76 × 11.39 × 2.09 ) (W × D × H)
Packaging Dimensions
433.0 mm × 141.0 mm × 366.0 mm (17.05 × 5.56 × 14.41 ) (W × D × H)
Operating Temperature
–10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity
10%–90% (RH)
Installation
Rack or desktop
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
Popis produktu
Digitální videorekordér WizSense16 kanálů Penta-brid 4K-N/5MP 1U 2HDD
komprese videa s duálním streamem H.265+/H.265.
Podporuje full-channel AI-kódování.
Podporuje HDCVI/AHD/TVI/CVBS/IP video vstupy.
Max 32 kanálů vstupy IP kamery, každý kanál až 8MP; 128 Mb/s příchozí šířka pásma.
Až 8 kanálů video stream (analogový kanál) Ochrana perimetru.
Až 16 kanálů video stream (analogový kanál) SMD Plus.
Až 2 kanály video stream (analogový kanál)
IoT & POS funkce.
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel
Face Detection
Face Attributes
Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
2 channels (up to 12 face images/s each channel) )
Face Recognition
Face Database Capacity
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)
2 channels
SMD Plus
SMD Plus by Recorder
16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
Main stream:
4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps);
Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–6144 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
Third-party Camera Access
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
IOS; Android
Interoperability
ONVIF 21.12; CGI
Browser
Chrome, IE9 or later, Firefox
Network Mode
Single-address mode
Recording Playback
Record Mode
General, motion detection; intelligent; alarm; POS
Recording Playback
1/4/9/16
Backup Method
USB device and network
Playback Mode
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group
Yes
Alarm
General Alarm
Motion detection; video loss; tampering; local alarm
Anomaly Alarm
No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm
Face detection; face recognition; perimeter protection
Alarm Linkage
Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Ports
Audio Input
4-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Yes (share the same audio input with the first channel)
Alarm Input
16-channels
Alarm Output
3-channels
HDD Interface
2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485
1 port, for PTZ control
USB
2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI
1
VGA
1
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
DC 12V, 5A
Power Consumption
15 W (without HDD)
Net Weight
1.90 kg (4.20 lb)
Gross Weight
3.20 kg (7.00 lb)
Product Dimensions
375.0 mm × 289.4 mm × 53.0 mm (14.76 × 11.39 × 2.09 ) (W × D × H)
Packaging Dimensions
433.0 mm × 141.0 mm × 366.0 mm (17.05 × 5.56 × 14.41 ) (W × D × H)
Operating Temperature
–10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity
10%–90% (RH)
Installation
Rack or desktop
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
