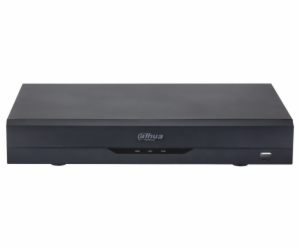

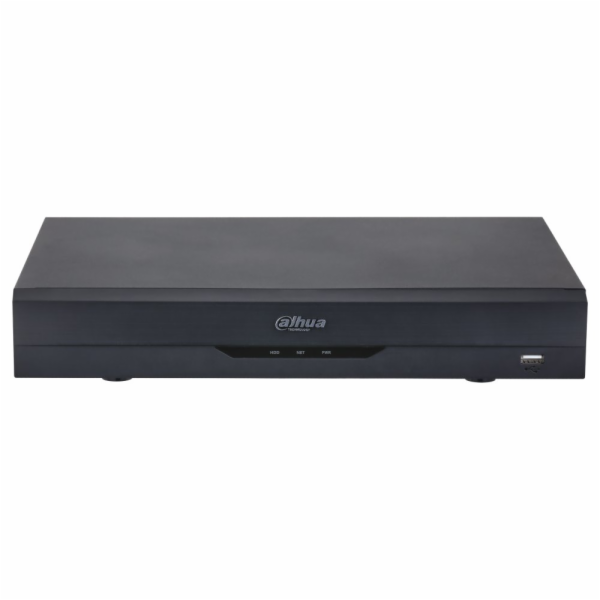

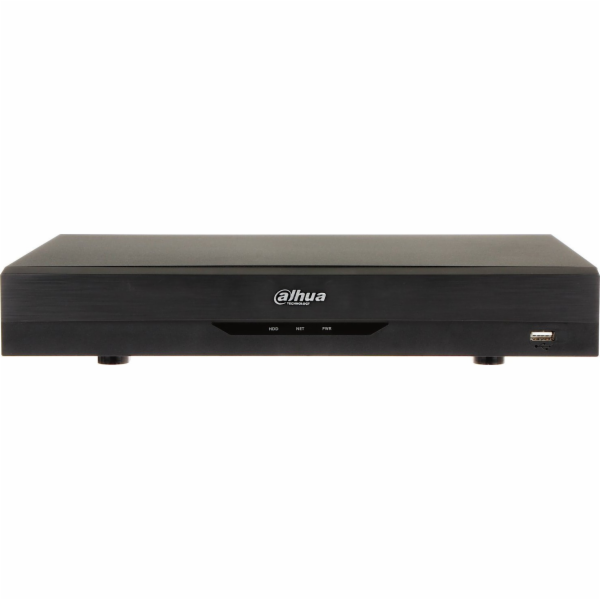

Dahua rekordér XVR5116H-4KL-I3
Dahua rekordér XVR5116H-4KL-I3
8271 Kč
6835 Kč bez DPH
Dostupnost: Skladem-dodání 2-4 dní
Part no.: XVR5116H-4KL-I3
Kód produktu: 104248063
Výrobce: DAHUA TECHNOLOGY
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
16 kanálů Penta-brid 4K-N/5MP Mini 1U 1HDD WizSense digitální videorekordér
komprese videa s duálním streamem H.265+/H.265.
Podporuje full-channel AI-kódování.
Podporuje HDCVI/AHD/TVI/CVBS/IP video vstupy.
Max 32 kanálů vstupy IP kamery, každý kanál až 8MP; 128 Mb/s příchozí šířka pásma.
Až 8 kanálů video stream (analogový kanál) Ochrana perimetru.
Až 16 kanálů video stream (analogový kanál) SMD Plus.
Až 2 kanály video stream (analogový kanál) lidská tvář uznání.
IoT & POS funkce.
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel
Face Detection
Face Attributes
Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
2 channels (up to 12 face images/s each channel) )
Face Recognition
Face Database Capacity
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)
2 channels
SMD Plus
SMD Plus by Recorder
16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
Main stream:
4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps);
Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–6144 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
Third-party Camera Access
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
IOS; Android
Interoperability
ONVIF 21.12; CGI
Browser
Chrome, IE9 or later, Firefox
Network Mode
Single-address mode
Recording Playback
Record Mode
General, motion detection; intelligent; alarm; POS
Recording Playback
1/4/9/16
Backup Method
USB device and network
Playback Mode
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
Motion detection; video loss; tampering; local alarm
Anomaly Alarm
No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm
Face detection; face recognition; perimeter protection
Alarm Linkage
Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Ports
Audio Input
1-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Yes (share the same audio input with the first channel)
HDD Interface
1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485
1 port, for PTZ control
USB
2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI
1
VGA
1
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
DC 12V, 3A
Power Consumption
15 W (without HDD)
Net Weight
1.30 kg (2.87 lb)
Gross Weight
2.10 kg (4.63 lb)
Product Dimensions
325.0 mm × 257.1 mm × 55.0 mm (12.80 × 10.12 × 2.17 ) (W × D × H)
Packaging Dimensions
372.0 mm × 117.0 mm × 308.0 mm (14.65 × 4.61 × 12.13 ) (W × D × H)
Operating Temperature
–10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity
10%–90% (RH)
Installation
Rack or desktop
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
Popis produktu
XVR5116H-4KL-I316 kanálů Penta-brid 4K-N/5MP Mini 1U 1HDD WizSense digitální videorekordér
komprese videa s duálním streamem H.265+/H.265.
Podporuje full-channel AI-kódování.
Podporuje HDCVI/AHD/TVI/CVBS/IP video vstupy.
Max 32 kanálů vstupy IP kamery, každý kanál až 8MP; 128 Mb/s příchozí šířka pásma.
Až 8 kanálů video stream (analogový kanál) Ochrana perimetru.
Až 16 kanálů video stream (analogový kanál) SMD Plus.
Až 2 kanály video stream (analogový kanál) lidská tvář uznání.
IoT & POS funkce.
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel
Face Detection
Face Attributes
Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
2 channels (up to 12 face images/s each channel) )
Face Recognition
Face Database Capacity
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)
2 channels
SMD Plus
SMD Plus by Recorder
16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
Main stream:
4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps);
Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–6144 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
Third-party Camera Access
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
IOS; Android
Interoperability
ONVIF 21.12; CGI
Browser
Chrome, IE9 or later, Firefox
Network Mode
Single-address mode
Recording Playback
Record Mode
General, motion detection; intelligent; alarm; POS
Recording Playback
1/4/9/16
Backup Method
USB device and network
Playback Mode
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
Motion detection; video loss; tampering; local alarm
Anomaly Alarm
No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm
Face detection; face recognition; perimeter protection
Alarm Linkage
Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Ports
Audio Input
1-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Yes (share the same audio input with the first channel)
HDD Interface
1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485
1 port, for PTZ control
USB
2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI
1
VGA
1
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
DC 12V, 3A
Power Consumption
15 W (without HDD)
Net Weight
1.30 kg (2.87 lb)
Gross Weight
2.10 kg (4.63 lb)
Product Dimensions
325.0 mm × 257.1 mm × 55.0 mm (12.80 × 10.12 × 2.17 ) (W × D × H)
Packaging Dimensions
372.0 mm × 117.0 mm × 308.0 mm (14.65 × 4.61 × 12.13 ) (W × D × H)
Operating Temperature
–10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity
10%–90% (RH)
Installation
Rack or desktop
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
