Popis produktu

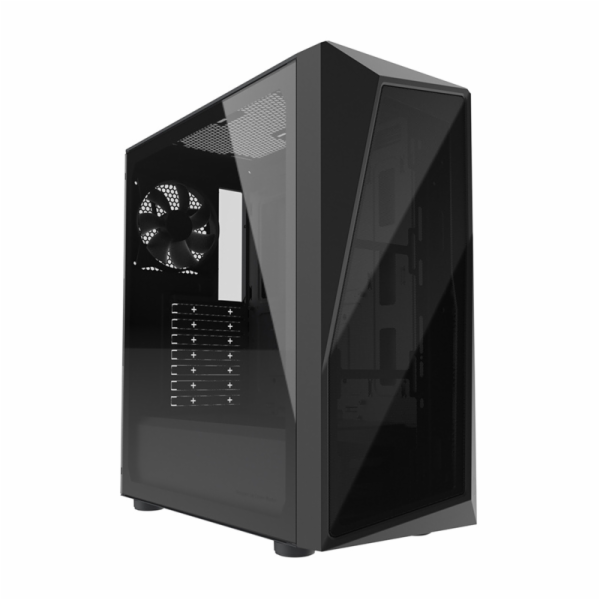

CMP 520L
Like a geode cradling glistening crystals within, CMP 520L’s asymmetrical front panel design frames any fans that the user chooses to install as unique centerpieces on the build. Ample mesh provides generous intake for efficient cooling as well as dust filtration, extending the lifespan of installed components while allowing them to operate at maximum capacity. The perforated power supply shroud accommodates both active and passively cooled PSUs, while keeping cables neatly tucked away for a tastefully sleek build. CMP 520L boasts ample clearance and supports graphics cards up to 350mm in length and CPU coolers up to 161mm in height, so users can effortlessly upgrade components to match their gaming preferences.

Mesh Geode Front Panel – Inspired by clean-cut, asymmetrical crystal formations, the mesh front panel offers generous intake as well as efficient dust filtration.
Versatile Cooling Options – Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Full Black Coating & PSU Cover – Let your system stand out with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
Room For Upgrades - Support for up to a 350mm graphics card, a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.



TECHNICAL SPECIFICATIONS



Product Number
CP520-KGNN-S03


Exterior Color
Black


Material
Exterior - Steel, Plastic Left Side Panel - Tempered Glass


Dimensions (L x W x H)
incl. Protrusions - 439x 204 x 463mm Body size - 432 x 204 x 448mm


Volume
41.34L


Motherboard Support
Mini-ITX, Micro-ATX, ATX


Expansion Slots
7


Drive Bays
5.25" ODD - 0 3.5" HDD - 2 2.5" SSD - 2


I/O Panel
USB Ports - 1 x USB 3.2 Gen 1 Type A,1 x USB2.0 Audio In / Out - 1 x 3.5mm Headset Jack (Audio + Mic)


ARGB Controller
N/A


Pre-installed Fan(s)
Top - N/A Front - N/A Rear - 1x MasterFan Lite


Fan Support
Top - 2 x 120mm, 2 x 140mm Front - 3 x 120mm, 2 x 140mm Rear - 1 x 120mm


Radiator Support
Top - 120mm/240mm* (*RAM height below 35mm) Front - 120/140/240/280mm Rear - 120 mm


Clearances
CPU Cooler - 161mm Power Supply - 160mm Graphics Card - 350mm(w/o front fans & radiator)


Cable Routing
Behind MB Tray - 18.5mm


Dust Filters
Top, Bottom


Power Supply Support
Bottom Mount, ATX


Warranty
2 Years

---
