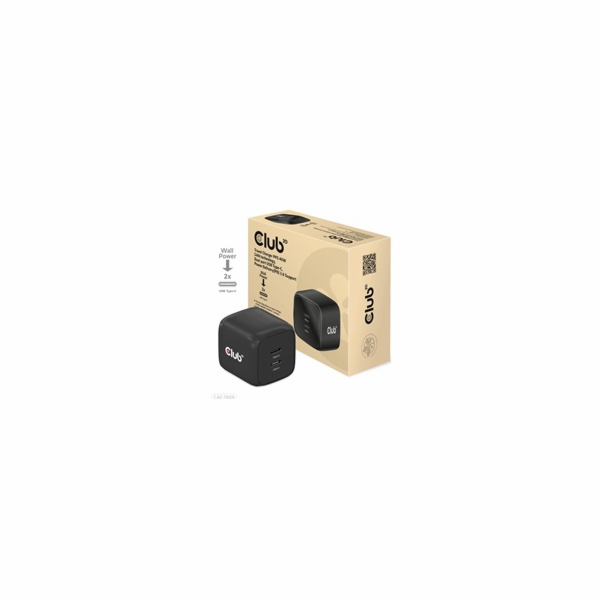

Travel Charger PPS 45W GAN technology, Dual port USB Type-C, Power Delivery(PD) 3.0 Support
The Club3D CAC-1909 Travel Charger PPS 45W GAN technology, Dual port USB Type-C, Power Delivery(PD) 3.0 Support. Compact size & Superior Performance: GAN technology chipset makes this charger 50% smaller than traditional 45W charger, small enough to carry anywhere. The Programmable Power Supply(PPS) 45W wall charger match a variety of PD devices from smart phones to laptops, one for all making charging simple. This wide compatibility charger will be your convenient companion during your business trip or vacation. The Power Charger is light weight without compromising on Quality and safety. By adopting Power Delivery(PD) charging technology, this versatile Power Charger provides you with charging function through Dual USB Type-C interface, you can charge any connected Mobilephone / Tablet / NoteBook. Furthermore all it needs is a free USB Type-C port on your Dock/NoteBook/Tablet/ Mobile phone to be charged via the bundled USB cable.

Internal chip allows an input voltage of 100-240VAC 50/60Hz 1.2A Max.
GAN technology
Programmable Power Supply(PPS)
45W of output power in total:

Output Single Port, USB-C1 or USB-C2:

PD 5.0V/9.0V/12.0V/15.0V?3.0A,20.0V?2.25A 45.0W
PPS: 3.3~16.0V?3.0A Total: 45.0W Max


Output Dual Port:

USB-C1: PD 5.0V?3.0A,9.0V?2.77A;
PPS 3.3~5.9V?3.0A,3.3~11.0V?2.75A Total:25.0W Max
USB-C2: PD 5.0V?3.0A,9.0V?2
Power Delivery(PD) 3.0 Support
Accurate limited current output and over current protection(OCP)
Overload protection and over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection and remove the fault conditon auto-recovery(OTP)
Compliant with CE, FCC standards.
Light Weight and convenient to use.
Specially designed for your USB Type-C supported devices.





TECHNICAL SPECIFICATIONS



OS Support
N/A


In the box
• CAC-1909 Travel Charger PPS 45W GAN technology, Dual port USB Type-C, Power Delivery(PD) 3.0 Support • 1x RED (Power ONLY) USB Type-C cable(1 m / 3.28 ft) for connecting to Host(max. 100W)


Available Interfaces
Input : • 1x Mains connector Output : • 2x USB Type-C Female


Other info
• Box size: 11 x 13 x 5.5cm / 4.33 x 5.12 x 2.16" • Device size: 7.6 x 3.8 x 4.05 / 2.99 x 1.5 x 1.59" • USB (Power) Cable length approx.: 1 m / 3.28 ft • Device Weight: 87 gr / 3.07 oz • USB Cable Weight: 35 gr / 1.2 oz • Box Weight: 40 gr / 1.41oz • LPDE Bag Weight: 9 gr / 0.3 oz • Total Weight(depending on PowerPlug) approx.: 171 gr / 6.03 oz • Meets ROHS, FCC, and CE EMI requirements
