USB Gen2 Type-C to HDMI 8K60Hz or 4K120Hz HDR10+ with DSC1.2 with Power Delivery 3.0 Active Adapter M/F

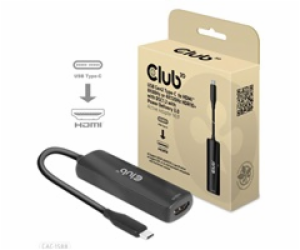

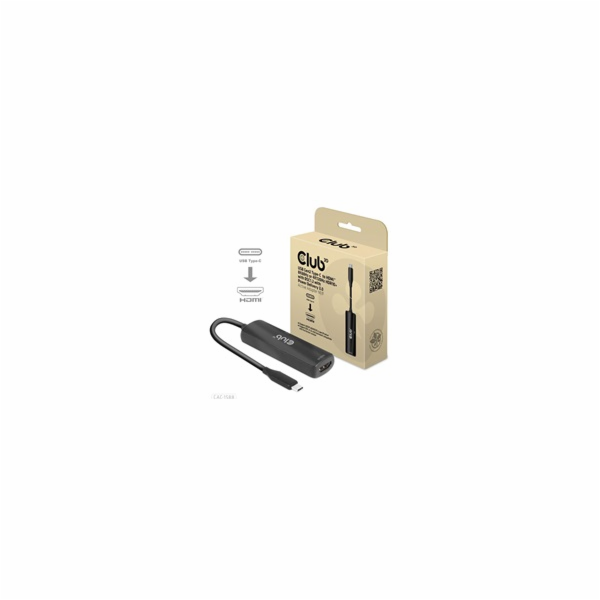

The Club 3D CAC-1588 is a USB Type-C to HDMI™(8K60Hz or 4K120Hz) Adapter with PD Charging. The HDMI™ port allows you to connect a HDMI™ monitor so that you can watch videos on a big screen and the USB-Type-C PD port support PD3.0 with max 100W PD Charging. It can work on all USB Type-C and Thunderbolt™ host that supports DP1.4 Alt mode. With its DP1.4 Alt Mode DSC video compression technology, this adapter is able to convert DP1.4 Alt Mode video signals to HDMI™, supporting video display resolutions up to 8K60Hz (7680 x 4320)** and creating life like colors and movements with HDR10+ giving users the ultimate visual experience. The Adapter is bus powered so NO External power needed !

Compliant with VESA DisplayPort™ v1.4 Specification
Compliant with HDMI™ max. 8K60Hz or 4K120Hz Specification
Support HDCP1.4&HDCP2.3 specification
Support DSC v1.2a and backward compatible with the former version
Support Max. resolution/refresh rates up to 8K/60Hz or 4k120Hz
Support Dynamic HDR10+
Support 8/10/12 bit color depth output
Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
Support max. 100Watt PD charging
Support PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging out PD Adapter

TECHNICAL SPECIFICATIONS



OS Support
• Windows • Mac OS


In the box
• CAC- 1588 USB Gen2 Type-C to HDMI™ 8K60Hz or 4K120Hz HDR10+ with DSC1.2 with Power Delivery 3.0 Active Adapter M/F


Available Interfaces
Input : • USB Gen2 Type C Male Output : • 1x HDMI™ (Female) • USB Type-C PD3.0 port


Other info
• Box size: 10 x 10 x 3.5 cm / 3.94 x 3.94 x 1.38" • Device size: 8.5 x 2.5 x 1.4 cm / 3.35 x 0.98 x 0.55" • Cable length approx.: 17 cm / 6.69" • Total length approx.: 25 cm / 9.84" • Connector dimensions: - USB Type C Male 2.9 x 1.2 x 0.7 cm / 1.15 x 0.5 x 0.28" • Device Weight: 40 gr / 1.41 oz • Box Weight: 22 gr / 0.78 oz • LDPE Bag Weight: 5 gr / 0.18 oz • Total Weight: 67 gr / 2.36 oz • Meets ROHS, FCC, and CE EMI requirements



In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.

---
