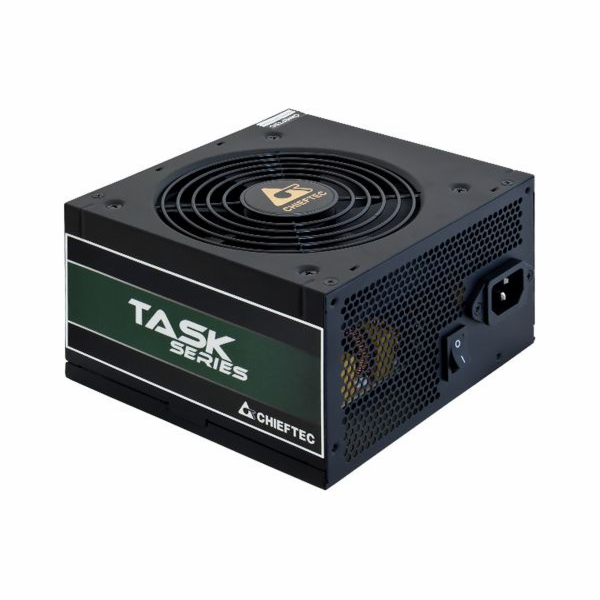

CHIEFTEC zdroj Task, TPS-600S, 600W, Full Range, 80+ Bronze, retail
CHIEFTEC zdroj Task, TPS-600S, 600W, Full Range, 80+ Bronze, retail
1546 Kč
1278 Kč bez DPH
Dostupnost: Dodání 3 dny
Part no.: TPS-600S
Kód produktu: 84579670
Výrobce: Chieftec
Váha: 2,06 kg
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
- 80PLUS Bronze certified efficiency - 650mm long cables for maximum case compatibility - All modern protection and safety features included The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
SPECIFICATIONS:
Performance
Model
Task 600W
Article no.
TPS-600S
EAN code
0753263076496
Weight (without/with package)
1.67 kg / 2.08 kg
AC Input
100-240V / 9.0A
Frequency
47-63Hz
+5V
17A
+3,3V
19A
+5V & +3,3V combined
110W
+12V 1
552W / 46A
+12V 2
-
+12V 1 & +12V 2 combined
-
P.F.
>0,9
-12V
0,3A / 3,6W
+5VsB
2,5A / 12,5W
Maximum Power
600W
Connectors
24PIN ATX
1
8 PIN EPS (4+4 )
1
8 PIN PCIe (6+2 )
2
SATA
5
MOLEX
3
Cable length
24PIN ATX
650
8 PIN EPS (4+4 )
650
8 PIN PCIe (6+2 )
500/150
MOLEX
500/150/150
SATA
500/150
SATA
500/150/150
Features
Spe c ification
ATX 12V 2.3
Form factor
PS II
Efficiency
80 PLUS Bronze
Dimension (DxWxH)
140 mm x 150 mm x 87 mm
PFC
Active PFC (0.9)
Fan
120mm silent fan
Security
AFC (Automatic Fanspeed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Undervoltage Protection)
Warranty
24 Months
Popis produktu
TPS-600S- 80PLUS Bronze certified efficiency - 650mm long cables for maximum case compatibility - All modern protection and safety features included The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
SPECIFICATIONS:
Performance
Model
Task 600W
Article no.
TPS-600S
EAN code
0753263076496
Weight (without/with package)
1.67 kg / 2.08 kg
AC Input
100-240V / 9.0A
Frequency
47-63Hz
+5V
17A
+3,3V
19A
+5V & +3,3V combined
110W
+12V 1
552W / 46A
+12V 2
-
+12V 1 & +12V 2 combined
-
P.F.
>0,9
-12V
0,3A / 3,6W
+5VsB
2,5A / 12,5W
Maximum Power
600W
Connectors
24PIN ATX
1
8 PIN EPS (4+4 )
1
8 PIN PCIe (6+2 )
2
SATA
5
MOLEX
3
Cable length
24PIN ATX
650
8 PIN EPS (4+4 )
650
8 PIN PCIe (6+2 )
500/150
MOLEX
500/150/150
SATA
500/150
SATA
500/150/150
Features
Spe c ification
ATX 12V 2.3
Form factor
PS II
Efficiency
80 PLUS Bronze
Dimension (DxWxH)
140 mm x 150 mm x 87 mm
PFC
Active PFC (0.9)
Fan
120mm silent fan
Security
AFC (Automatic Fanspeed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Undervoltage Protection)
Warranty
24 Months
