Popis produktu

Typ: I/O-Karte
Info: Karta PCIe
Hmotnost (g): 166

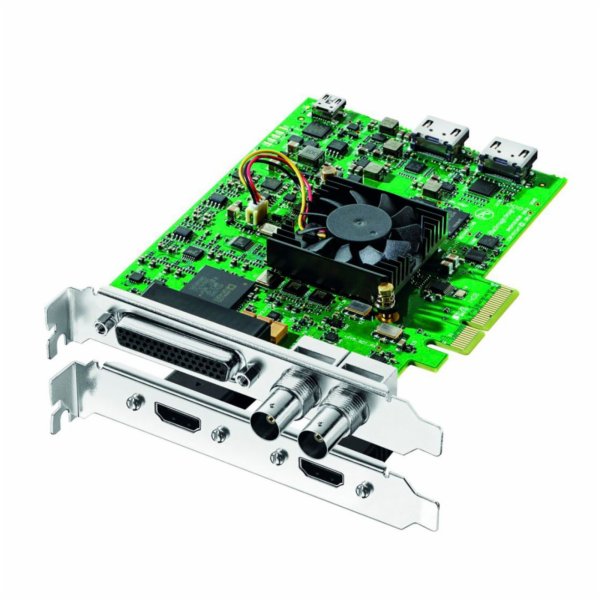

Blackmagic Design Decklink Studio 4K

If you want to seamlessly switch between SD, HD, 2K and Ultra HD when working with a wide range of analogue video and audio devices, the DeckLink Studio 4K is the perfect solution. The DeckLink Studio 4K is equipped with a wide range of analogue and digital video connections, including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, FBAS, S-Video, balanced 4-channel analogue audio, 2-channel AES/EBU switchable to 6-channel out and a reference input for Black Burst and Tri-Sync. It also offers RS-422 control interfaces for VTRs as well as keying in SD and a hardware down converter. Ideal for editing, painting and broadcast design.

Features:

SDI video inputs:


1x connector for 10-bit SD/HD/2K/4K, supports 6G 4:2:2 and 3G 4:4:4


SDI video outputs:


1x connector for 10-bit SD/HD/2K/4K, supports 6G 4:2:2 and 3G 4:4:4


Analogue video inputs:


1 YUV component connection via 3 BNC connectors, 1 for FBAS, 1 for S-Video. The component connection supports HD and SD


Analogue video outputs:


1x YUV component connection on 3 BNC connectors, 1 for FBAS, 1 for S-Video, 1 for SD-SDI. The component connection supports HD and SD


Analogue audio inputs:


4 channels of professional balanced analogue audio via 1/4" jack connections


Analogue audio outputs:


4 channels of professional balanced analogue audio via 1/4" jack connections. Channels 3 and 4 are switchable to AES/EBU outputs


AES/EBU audio inputs:


2 channels of unbalanced audio with sample rate converter


AES/EBU audio outputs:


2 channels unbalanced. Analogue outputs 3 and 4 are switchable to AES/EBU outputs for audio 3 and 4 as well as outputs 5 and 6. 6 AES/EBU audio channels are available for output when using this feature


SDI audio inputs:


16 channels embedded in HD/2K/4K, 8 channels embedded in SD


SDI audio outputs:


16 channels embedded in HD/2K/4K, 8 channels embedded in SD


HDMI video inputs:


1 HDMI Type A connector


HDMI video outputs:


1 HDMI Type A connector


HDMI audio inputs:


8 channels embedded in SD, HD, 4K


HDMI audio outputs:


8 channels embedded in SD, HD, 4K


Sync input:


Tri-Sync or Black Burst


Device control:


Sony compatible RS-422 interfaces for VTR control, TxRx serial ports, direction reversible via software control


Computer interface:


PCI Express with 4 lanes Generation 2, compatible with 4-, 8- and 16-lane PCI Express slots


Supported codecs:


AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR and DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, uncompressed 8 bit 4: 2:2, uncompressed 10 bit 4:2:2, uncompressed 10 bit 4:4:4


Real-time effects:


DaVinci Resolve, Final Cut Pro X internal effects, Adobe Premiere Pro CC Mercury Playback Engine effects, Avid Media Composer internal effects


Colour space conversion:


Hardware-based in real time


Colour accuracy:


10 bit


Colour space:


REC 601, REC 709




---
