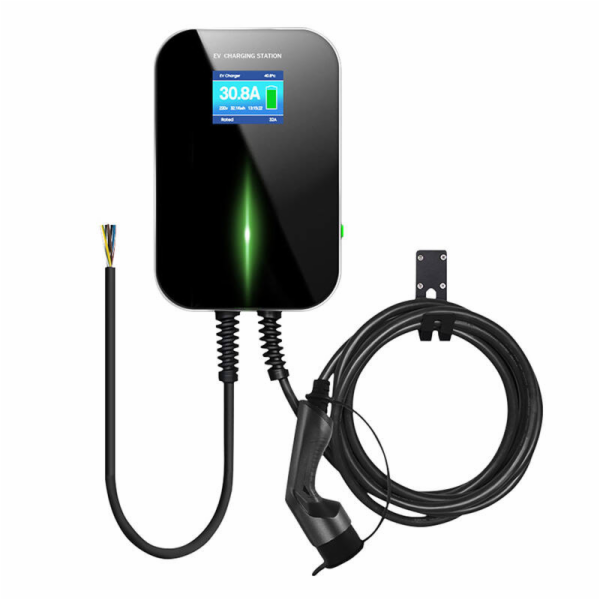

Besen BS20 22kW wall-mounted vehicle charger
The Besen BS20-BC-22KW is an advanced electric vehicle charger designed for a wide range of applications - from private garages to extensive commercial parking lots. Offering output power of up to 7.2 kW in single-phase mode and 22 kW in three-phase mode, the charger provides fast and efficient charging for a variety of vehicle types, including private cars, electric school buses and electric ambulances. With various safety features and a carefully considered design, you can use it comfortably and safely.
Easy installation and user-friendly interface
The Besen BS20-BC-22KW charger has been designed with simplicity of use and ease of installation in mind. Mounting on a wall or on the ground is quick and requires no complicated tools, making the device ideal for both residential and commercial use. The 3.5" color LCD display provides the user with detailed charging status information, and the smart chip allows the device to identify different EV models and adjust charging settings to meet specific needs.
Robust design and weatherproof
The BS20-BC-22KW features high-quality stainless steel and aluminum construction for durability and resistance to mechanical damage. An IK10 impact rating confirms the unit s ability to withstand impact and damage, which is crucial in commercial and outdoor environments. The IP66 rating guarantees full dust and water resistance, making this charger ideal for outdoor use regardless of weather conditions.
Advanced safety features
The Besen BS20-BC-22KW is equipped with a number of advanced safety features, including protection against under-voltage, over-charge, short circuit, overheating and lightning. In addition, the Type A and Type A+6mA DC RCD system provides protection against electric shock, enhancing safety.
Energy efficiency and optional connectivity
The Besen BS20-BC-22KW features low standby power consumption of less than 8W, which contributes to energy savings and reduced operating costs. In addition, the charger offers optional connectivity via Ethernet, WIFI, 4G or Bluetooth, allowing remote monitoring and management of the device. In turn, CE, FCC, CSA, RoHS and ETL certifications confirm that the product meets high safety and quality standards.

Manufacturer
Besen
Model
BS20-BC-22KW
Input voltage / output voltage
AC 230V / 400V
Input frequency
47 ~ 63Hz
Output power
7.2kW (single phase) / 22kW (three phase)
Max. output current
32A
Connector type
SAE J1772, IEC 62196-2, GB/T
Degree of protection
IP66
Impact protection
IK10
Protection
Under-voltage protection / over-voltage protection / short-circuit protection / overheat protection / lightning protection
RCD
Type A / Type A+6mA DC
Ambient temperature
-25°C ~ 55°C
Ambient humidity
0-95% (non-condensing)
Maximum altitude
Power consumption in standby mode
Certifications
CE/FCC/CSA/RoHS/ETL
Current adjustment
Yes
Ethernet/WIFI/4G/Bluetooth
Optional
LED indicator
Yes
LCD display
3.5 inch color display
Mounting method
On the wall / on the ground
Dimensions
295 x 195 x 65 mm
Weight
6-8 kg

---
