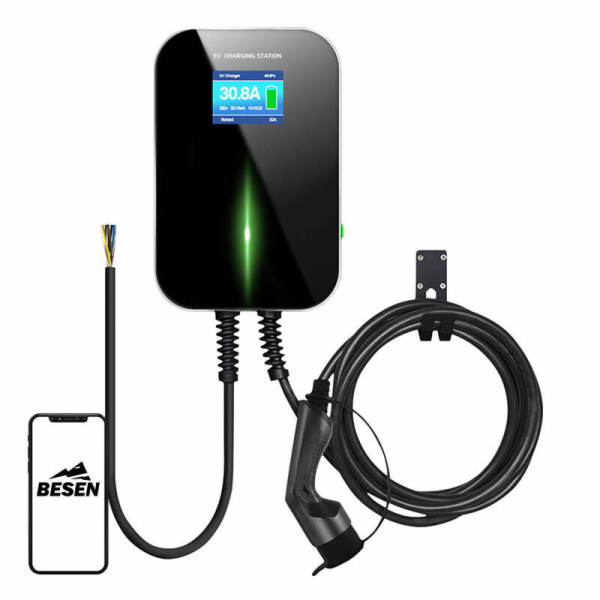

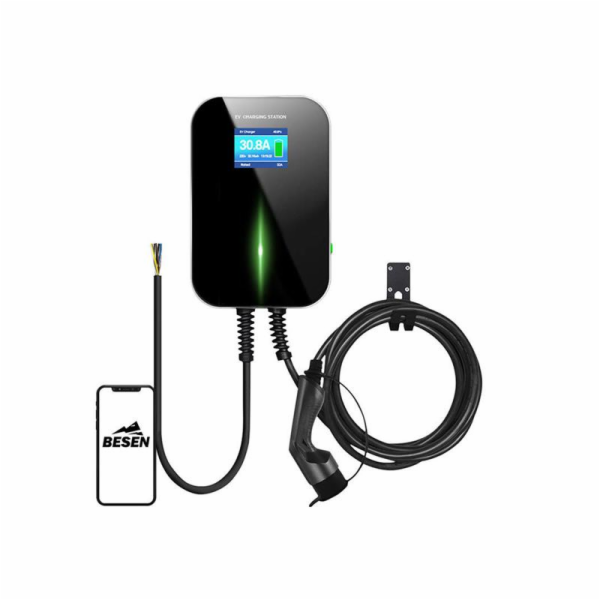

Besen BS20 11kW wall charger for electric vehicles APP
The Besen BS20 is an advanced electric vehicle charger designed for a wide range of applications - from private garages to extensive commercial parking lots. Offering up to 11 kW of output power, the charger provides fast and efficient charging for various types of vehicles, including private cars, electric school buses and ambulances. Thanks to various safety features and a carefully considered design, you can use it comfortably and safely. In addition, a dedicated app allows you to manage the BS20 s operation.
Easy installation and user-friendly interface
The Besen BS20 charger is designed with simplicity of use and ease of installation in mind. Mounting on a wall or on the ground is quick and requires no complicated tools, making the device ideal for both residential and commercial use. A 3.5" color LCD display provides users with detailed information on charging status, while a smart chip allows the device to identify different EV models and customize charging settings to meet specific needs.
Control from within the app
Download the EVSEMaster app, available on the App Store and Google Play, and take full advantage of the BS20 s capabilities. From it, you can conveniently adjust your vehicle s charging time, check charging history and update software. You can also start or stop the charging process remotely - just pair the device with your smartphone via Bluetooth. Enjoy the convenience that Besen offers.
Robust construction and weather resistance
The BS20 features high-quality stainless steel and aluminum construction for durability and weather resistance. An IK10 impact rating confirms that the unit is resistant to impact and damage, which is crucial in commercial and outdoor environments. The IP66 rating guarantees full dust and water resistance, making this charger ideal for outdoor use regardless of weather conditions.
Advanced safety features
The Besen BS20 is equipped with a number of advanced safety features, including protection against under-voltage, over-charge, short circuit, overheating and lightning. In addition, a Type A and Type A+6mA DC RCD system provides protection against electric shock for added safety.
Energy efficiency and optional connectivity
The Besen BS20 features low standby power consumption of less than 8W, which contributes to energy savings and reduced operating costs. In addition, the charger offers optional connectivity via Ethernet, Wi-Fi, 4G or Bluetooth, allowing remote monitoring and management of the device. In turn, CE, FCC, CSA, RoHS and ETL certifications confirm that the product meets high safety and quality standards.

Manufacturer
Besen
Model
BS20
Input voltage / output voltage
AC 230V / 400V
Input frequency
47 ~ 63Hz
Output power
11 kW
Max. output current
32A
Connector type
SAE J1772, IEC 62196-2, GB/T
Degree of protection
IP66
Impact protection
IK10
Protection
Under-voltage protection / over-voltage protection / short-circuit protection / overheat protection / lightning protection
RCD
Type A / Type A+6mA DC
Ambient temperature
-25°C ~ 55°C
Ambient humidity
0-95% (non-condensing)
Maximum altitude
Power consumption in standby mode
Certifications
CE/FCC/CSA/RoHS/ETL
Current adjustment
Yes
Ethernet/Wi-Fi/4G/Bluetooth
Optional
LED indicator
Yes
LCD display
3.5 inch color display
Mounting method
On the wall / on the ground
Dimensions
295 x 195 x 65 mm
Weight
6-8 kg
Application
EVSEMaster

---
