Popis produktu

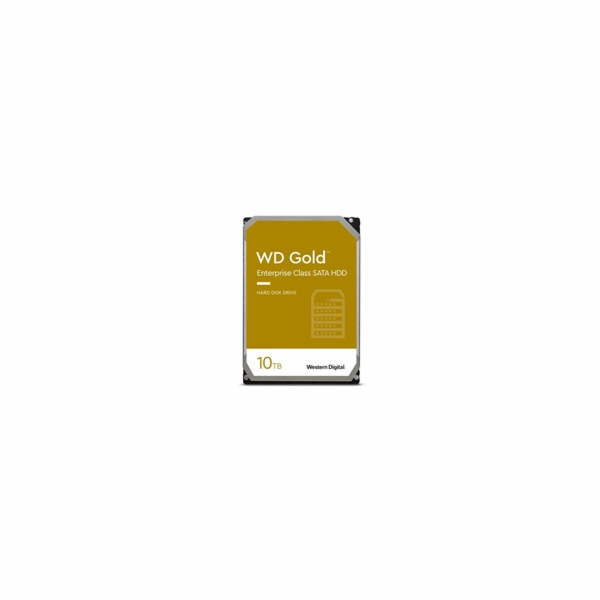

WD Gold™ DC HA750 Enterprise Class SATA HDD 10TB

Conquer tough workloads with enterprise-grade WD Gold™ HDDs. Available in 1TB to 14TB* capacities.
Enhanced reliability with up to 2.5M hours MTBF
Specifically designed for use in enterprise-grade data centers and storage systems
Improve performance with our vibration protection technology
HelioSeal™ technology delivers high capacities with a low power draw [12TB and above]
Get peace of mind with a 5-year limited warranty

TECHNICAL SPECIFICATIONS



PRODUCT FEATURES



Capacity
10TB


Interface
SATA 6BG/s


Format: Sector size (bytes) **
512e


Native Command Queuing
Yes


Form Factor
3.5-inch


RoHS Compliant ***
Yes






PERFORMANCE



Data Trasnfer Rate ‡ (max sustained)
273 MB/s


Performance Class
7200 RPM Class


Cache ‡‡
256 MB






RELIABILITY



MTBF (hours)
2 000 000


Annualized Failure Rate (AFR, %) ‡‡‡
0,44


Load/unload cycles (minimum)
600 000


Limited Warranty (years)
5






POWER MANAGEMENT



Average Power Requirements
Operational § : 9.2 W Idle §§ : 8.0 W Power efficiency indes (W/TB,idle): 0,8






ENVIRONMENTAL SPECIFICATIONS



Shock (Read/Write)
Operating (half-sine wave, 2ms): 70G/50G Non-operating (half-sine wave, 2ms): 250G (2ms)


Temperature
Operating: 5° C to 60° C Non-operating: -40° C to 70° C


Acoustics (average)
Idle Mode: 34 dBA Seek Mode: 38 dBa






PHYSICAL DIMENSIONS



Height (max)
1.028 in. (26.1 mm) max


Lenght (max)
5.787 in. (147.0 mm) max


Width (± .01 in.)
4.0 in. (101.6 mm) ± .01 in.


Weight
1.65 lb. (.75 kg) ± 10%



*CAPACITY: One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors. **FORMAT: 512e: Advanced Format drive with 512-byte logical sectors and 4K (4096-byte) physical sectors; 512n: Native 512-byte logical and physical sectors *** RoHS COMPLIANT: Western Digital hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU. ‡ DATA TRANSFER RATE: MB/s is 1,000,000 bytes ‡‡ CACHE BUFFER: Portion of buffer capacity used for drive firmware ‡‡‡ MTBF and AFR: Specifications are based on a sample population and are estimated by statistical measurements and acceleration algorithms under typical operating conditions for this drive model. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty. § OPERATIONAL POWER: 8K Queue Depth = 1 @ 40 IOPS §§ IDLE POWER: Based on use of Idle_A §§§ Some models of Ultrastar are identical in form, fit and function to the respective WD Gold™ model. The only differences are limited to the brand, label and ID string as reported by the firmware. For these drives, any previously completed qualification of the equivalent Ultrastar™ models should not require a re-qualification."

---
