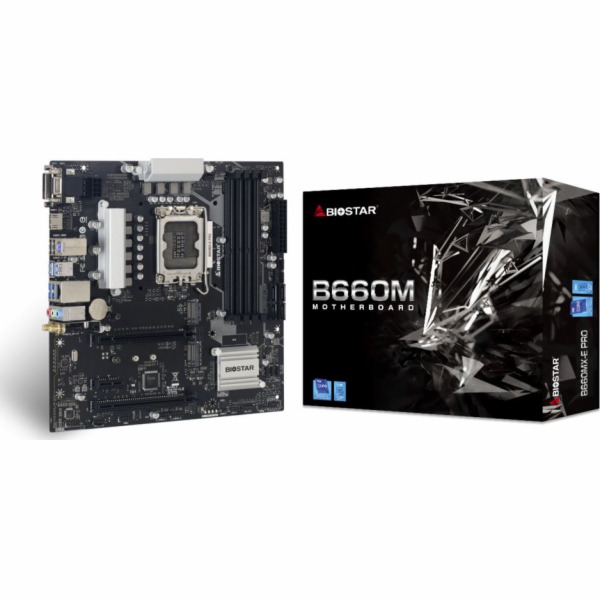

Popis produktu

Socket : 1700




Supports 12 th / 13 th / 14 th  Generation Intel Core™ Processor
Intel B660 single chip architecture
Supports 4-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC) up to 128 GB Memory
Supports PCIe 4.0
Supports PCIe M.2 4.0 (64Gb/s)
Supports HDMI 4K2K
Supports USB 3.2 Gen1
Support WiFi 6 & 6E module (No WiFi card included)





Chipset
Intel B660


CPU SUPPORT
Support for 12th / 13th / 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.


MEMORY
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC)
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.


INTEGRATED VIDEO
Supports DX12
Supports HDCP


STORAGE
Total supports 2 x M.2 socket and 4x SATA III (6Gb/s) ports
Intel 12th/13th/14th Processors
1 x M.2 (M Key) Socket (M2_PCIEG4_64G):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)
Intel B660 Chipset
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2242/2260/2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s) & SATA lll (6Gb/s) SSD
4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology
* Specifications vary by CPU types


LAN
Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability


AUDIO CODEC
ALC897
7.1 Channels, High Definition Audio, Hi-Fi(Front)


USB
6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)


EXPANSION SLOT
INTEL 12th/13th/14th Processors
1 x PCIe 4.0 x16 Slot (x16 mode)
INTEL B660 Chipset
1 x PCIe 3.0 x16 Slot (x4 mode)
1 x PCIe 3.0 x1 Slot
* Specifications vary by CPU types


REAR I/O
2 x WIFI Antenna Port
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI
1 x VGA+DVI Port
4 x USB 3.2 (Gen1) port
2 x USB 2.0 port
1 x LAN port
3 x Audio Jack


INTERNAL I/O
4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x SPI TPM Header
2 x LED Header (5V)
1 x LED Header (12V)
* M.2 (E key) Wi-Fi card is not provided


H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring


DIMENSION
Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )


OS SUPPORT
Supports Windows 10 (64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.


BUNDLE SOFTWARE
BullGuard


ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x WiFi antenna accessories


FEATURES
VIVID LED DJ
BIO-FLASHER
A.I FAN


Caution!! The specification and pictures are subject to change without notice!






---
