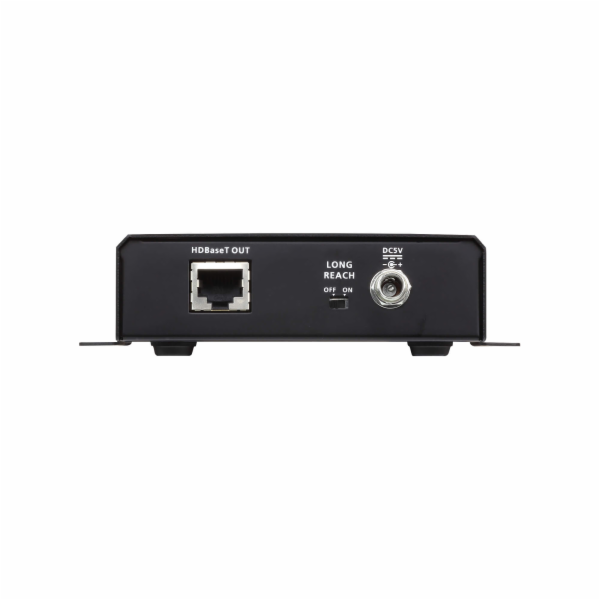

ATEN HDMI HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A)
ATEN HDMI HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A)
9933 Kč
8209 Kč bez DPH
Dostupnost: Dodání 3-5 dní
Part no.: VE1812T-AT-G
Kód produktu: 72445362
Výrobce: ATEN
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
The VE1812T features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812T supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812T HDMI HDBaseT Transmitter with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Features
HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable
Package Contents
1x VE1812T HDMI HDBaseT Transmitter with POH
1x 0AD9-1F05-30EG Power Adapter
1x RS-232 Terminal Block
1x User Instructions
Popis produktu
HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cableSupports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
The VE1812T features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812T supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812T HDMI HDBaseT Transmitter with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Features
HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable
Package Contents
1x VE1812T HDMI HDBaseT Transmitter with POH
1x 0AD9-1F05-30EG Power Adapter
1x RS-232 Terminal Block
1x User Instructions
