ROG STRIX X670E-I GAMING WIFI



CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*


* Refer to www.asus.com for CPU support list.


Chipset
AMD X670


Memory
2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports AMD EXTended Profiles for Overclocking (EXPO™)


OptiMem II


* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.


* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function


Graphics
1 x HDMI port*


2 x USB4 ports support USB Type-C display outputs**


*Supports 4K@60Hz as specified in HDMI 2.1.


** VGA resolution support depends on processors or graphic cards resolution.


Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors*


1 x PCIe 5.0 x16 slot(s)


Storage
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*


AMD Ryzen™ 7000 Series Desktop Processors


M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)


AMD X670 Chipset


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


2 x SATA 6Gb/s ports****


*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1.


**** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports


Ethernet
1 x Intel 2.5Gb Ethernet


ASUS LANGuard


Wireless & Bluetooth
Wi-Fi 6E


2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band*


Bluetooth v5.2


* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.


USB
Rear USB (Total 10 ports)


2 x USB4 port(s) with Intel JHL8540 USB4 controller (2 x USB Type-C)


5 x USB 3.2 Gen 2 port(s) (5 x Type-A)


3 x USB 2.0 port(s) (3 x Type-A)


Front USB (Total 3 ports)


1 x USB 3.2 Gen 2 connector (supports USB Type-C )


1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports


ROG STRIX HIVE (Total 2 ports)


1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C)


1 x USB 2.0 port(s) (1 x Type-A)


ROG FPS-II C (Total 3 ports)


2 x USB 2.0 header(s) additional 3 USB 2.0 ports**


Audio
ROG High Definition Audio CODEC ALC4050


- Supports: Jack-detection


- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input


- Supports up to 32-Bit/384 kHz playback


Audio Features


- ROG Hyper-Grounding Technology


- ESS SABRE9260Q DAC


- Silver-plated audio jacks


- Optical S/PDIF out port & USB Type-C port with indepent power solution


- Dedicated audio PCB layers


*All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE


Back Panel I/O Ports
2 x USB4 port(s) with Intel JHL8540 USB4 controller (2 x USB Type-C)


5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE)


3 x USB 2.0 port(s) (3 x Type-A)


1 x HDMI port


1 x Wi-Fi Module


1 x Intel I225-V 2.5Gb Ethernet port


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header(s)


1 x 4-pin AIO Pump header(s)


1 x 4-pin Chassis Fan header(s)


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


Storage related


2 x M.2 slots (Key M)


USB


1 x USB 3.2 Gen 2 connector (support(s) USB Type-C )


Miscellaneous


1 x Addressable Gen 2 header(s)


1 x AURA RGB header(s)


1 x RTC Battery header


1 x Thermal Sensor header


1 x 2 pin Power_BTN header


2 x USB Type-C connectors to Install ROG FPS-II card*


ROG FPS-II card


2 x SATA 6Gb/s ports


1 x CPU Over Voltage jumper


1 x Clear CMOS header


1 x Front Panel header


1 x Alteration mode switch


2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports


Special Features
Extreme Engine Digi+


- 5K Black Metallic Capacitors


ASUS Q-Design


- M.2 Q-Latch


- Q-DIMM


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink


- Aluminum backplate


- M.2 Chipset Fan


- VRM heatsink design


ASUS EZ DIY


- BIOS FlashBack™ button


- BIOS FlashBack™ LED


- ProCool II


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


AURA Sync


- AURA RGB header(s)


- Addressable Gen 2 header(s)

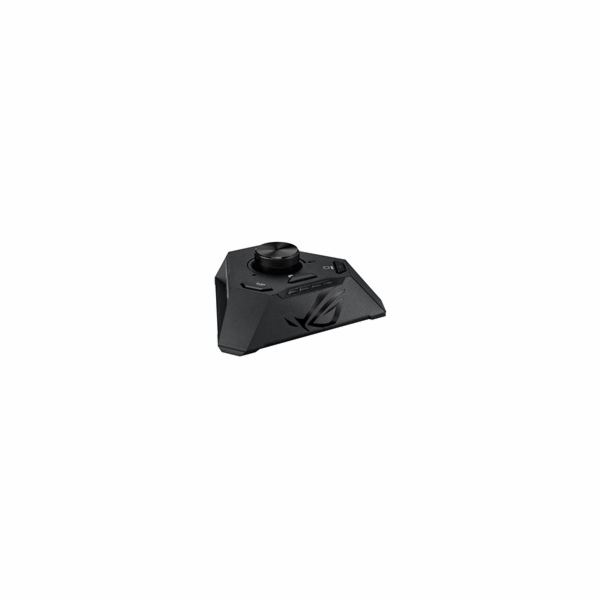

ROG STRIX HIVE


1 x USB Type-C connects to Motherboard


1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C)


1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack™)


1 x Headphone jack with Mic in


1 x Mic in jack with Optical S/PDIF out


1 x EZ mode PBO button


1 x FlexKey button


1 x BIOS FlashBack™ button


1 x Volume Control Knob with Mute Button


Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


Software Features
ROG Exclusive Software


- GameFirst VI


- ROG CPU-Z


- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


- Sonic Radar III


- DTS Sound Unbound


- Anti-virus software


ASUS Exclusive Software


Armoury Crate


- AIDA64 Extreme (60 days free trial)


- AURA Creator


- AURA Sync


- Fan Xpert 4 (with AI Cooling II)


- Power Saving


- Two-Way AI Noise Cancellation


AI Suite 3


- TPU


- DIGI+ VRM


- Turbo app


- PC Cleaner


MyAsus


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


Dynamic OC Switcher


FlexKey


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE



Cables


2 x SATA 6Gb/s cables


1 x ROG USB2.0 splitter cable


1 x Panel Cable


ROG FPS-II Card


1 x ROG FPS-II Card


ROG STRIX HIVE


1 x ROG STRIX HIVE


1 x USB Type-C power connection cable


Additional Cooling Kit


1 x Thermal pad for M.2


Miscellaneous


1 x ASUS Wi-Fi moving antennas


1 x Cable ties pack


1 x Rubber Package(s) for M.2


1 x Q-Latch package(s) for M.2


1 x ROG key chain


1 x ROG Strix stickers


1 x ROG Strix thank you card


Installation Media



1 x User guide


Operating System
Windows 11, Windows 10 64-bit


Form Factor
Mini-ITX Form Factor


6.7 inch x 6.7 inch( 17cm x 17cm)

---
