Popis produktu

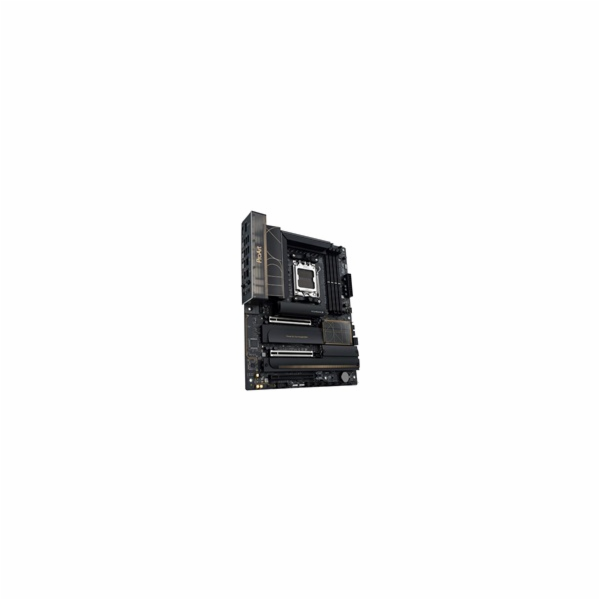

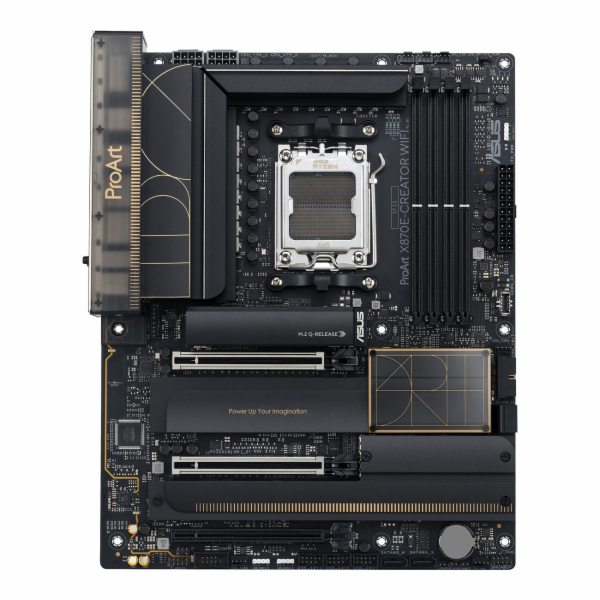

ASUS ProArt X870E-CREATOR WIFI When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors. CPU AMD Socket AM5 for AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD X870 Memory 4 x DIMM slots, max. 256GB, DDR5 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Graphics 1 x HDMITM port** 2 x USB4 ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. **** Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors or graphic cards resolution. Expansion Slots AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD X870 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** PCIEX16(G5)_2 slot shares bandwidth with M.2_2. LAN 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth " Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor s website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer s website for the latest specifications." USB Rear USB (Total 11 ports) 2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C) 1 x USB 20Gbps port(s) (1 x USB Type-C) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Audio "Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C) 1 x USB 20Gbps port(s) (1 x USB Type-C) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A)  1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 3 x Audio jacks  1 x BIOS FlashBack™ button  1 x Clear CMOS button  Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A - Compatible with PD3.0 Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving - ASUS GlideX ASUS DriverHub USB Wattage Watcher TurboV Core ASUS CPU-Z ProArt Creator Hub CreationFirst Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey Remote Management Features IT Management software supported - ASUS Control Center Express(ACCE) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 Q-Latch package(s) 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt ruler Documentation 1 x Quick start guide 1 x ACC Express Activation Key Card 1 x User guide Operating System Windows 11, Windows 10 64-bit Form Factor ATX Form Factor 30.5 cm x 24.4 cm

---

Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
