Popis produktu

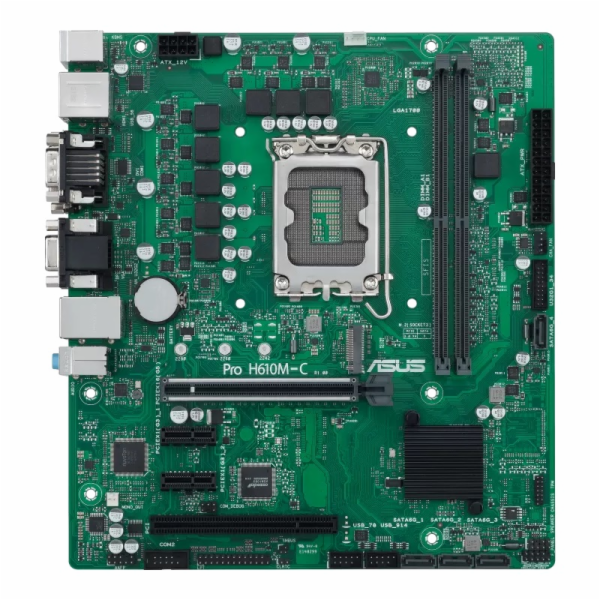

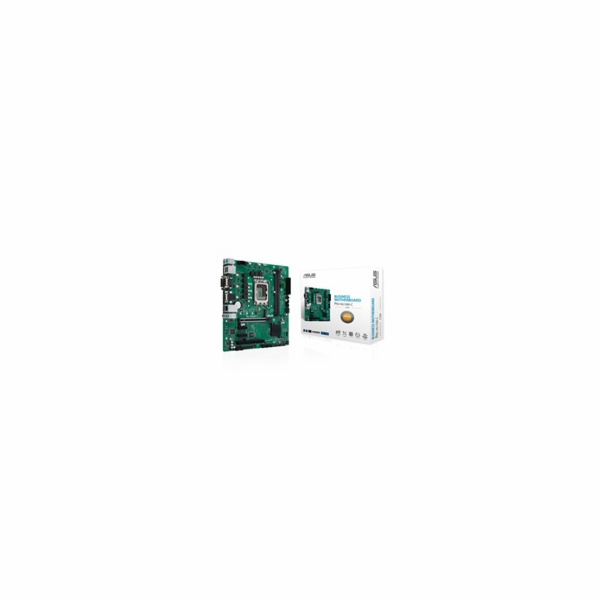

Pro H610M-C-CSM
Micro-ATX H610 business motherboard with enhanced security, reliability, manageability and serviceability

Intel LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization : An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Ultrafast connectivity: PCIe 5.0, DDDR 5, USB 3.2 Gen 2

CPU
Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort** 1 x D-Sub port 1 x HDMI port*** 1 x DVI-D port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports up to 3 displays simultaneously.
Expansion Slots
Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel H610 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet ASUS LANGuard
USB
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

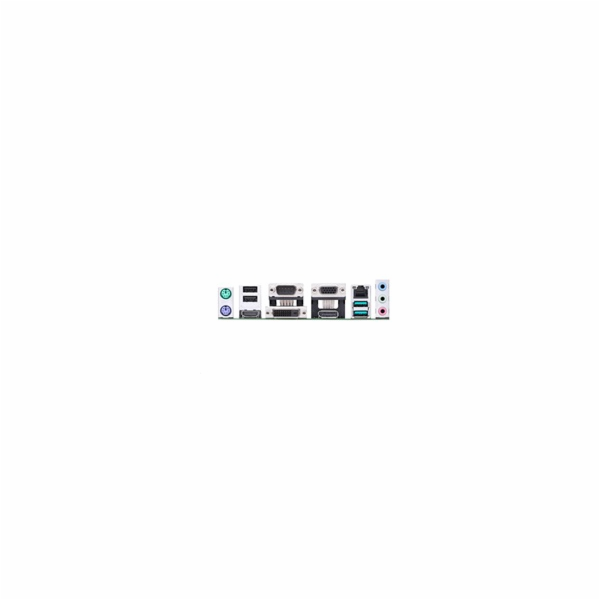

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x D-Sub port 1 x DVI-D port 1 x Intel 1Gb Ethernet 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port 1 x COM port
Internal I/O Connectors
Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features
ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection
Software Features
ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
BIOS
128Mb Flash ROM
Manageability
WOL by PME, PXE
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX Form Factor 9.6 inch x 8.7 inch (24.4 cm x 22 cm)

---
