Popis produktu

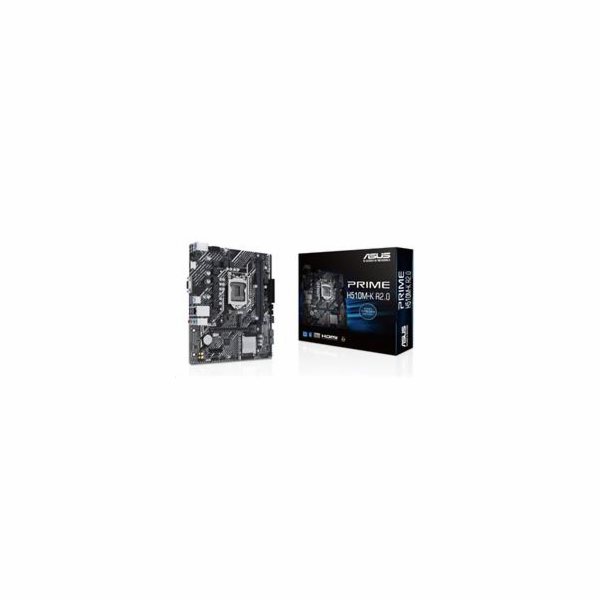

ASUS PRIME H510M-K R2.0 Intel H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel Optane Memory Ready, FAN Xpert, Armoury Crate, 5X PROTECTION III Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors
Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen 1
Comprehensive cooling: PCH heatsink and Fan Xpert
5X Protection III: Multiple hardware safeguards for all-round protection CPU Intel Socket LGA1200 for 11th Gen Intel Core™ Processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel H470 Chipset
Memory 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* 10th Gen Intel Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ Graphics 1 x VGA port
1 x HDMI™ port**
* Graphics specifications may vary between CPU types.
** Only Intel 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. Expansion Slots
Intel 11th & 10th Gen Processors*
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel 10th Gen processors support PCIe 3.0 x16
Intel H470 Chipset
1 x PCIe 3.0 x1 slot Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H470 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet USB Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Anchor
Documentation
1 x User guide
Operating System
Windows 10 64-bit
Form Factor
micro-ATX Form Factor
8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )

---
