Popis produktu

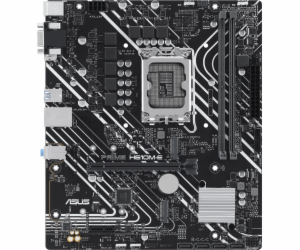

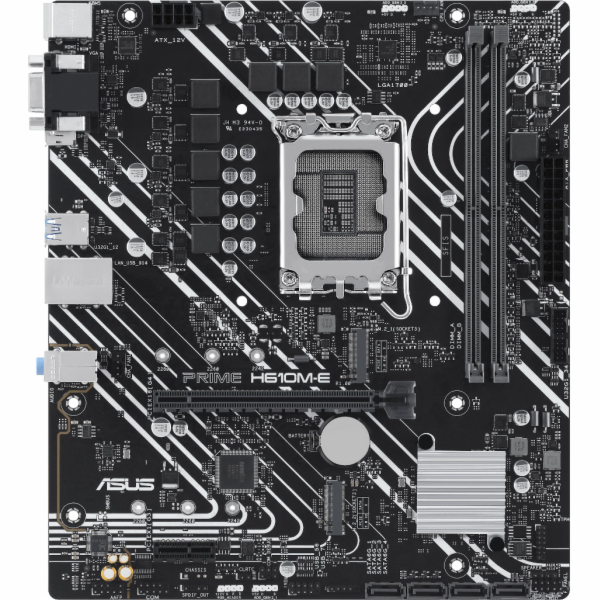

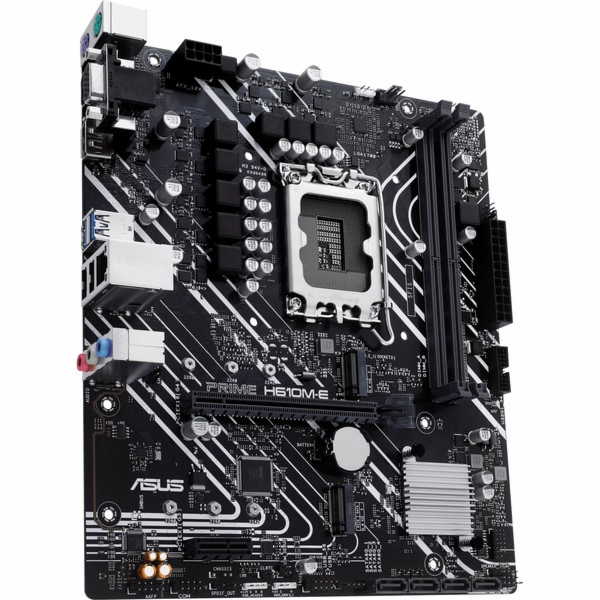

ASUS PRIME H610M-E-CSM ASUS Prime H610M-E-CSM, an Intel H610 (LGA 1700) mATX motherboard with DDR5, PCIe 4.0, dual M.2 slots, Realtek 1 Gb Ethernet, DisplayPort, HDMI™, VGA , USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, Aura Sync Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors Comprehensive Cooling: PCH heatsink and Fan Xpert 2+ Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection CPU Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel H610 Chipset Memory 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics 1 x DisplayPort** 1 x D-Sub port 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet USB Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 1 x Aura RGB header 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 RGB headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancellation AI Suite 3 - Performance And Power Saving Utility EPU DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Documentation 1 x User guide Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor mATX Form Factor 24.4 cm x 21.1 cm

---
