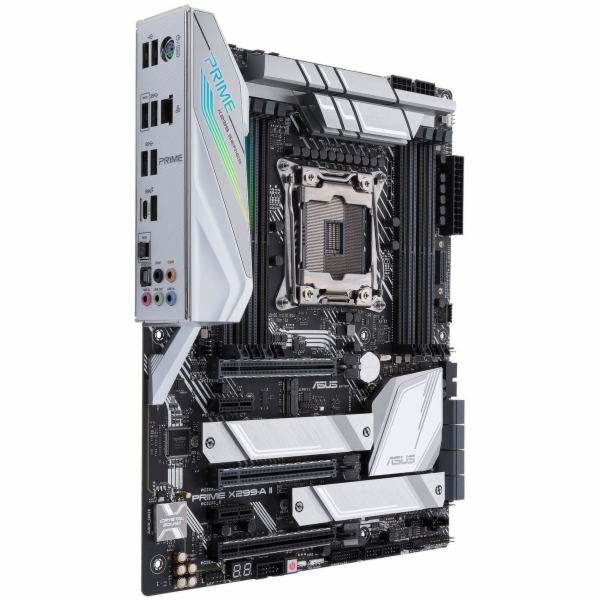

Prime X299-A II
Intel ATX motherboard LGA 2066 for Intel Core X-series processors, with AI Overclocking, 12 IR3555 power stages, DDR4 4266 MHz, Triple M.2, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting

Features

Intel LGA 2066 socket: Ready for the latest Intel Core™ X-series processors
AI Overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
Robust power design: 12 IR3555 power stages, ProCool II connectors, alloy chokes and ultra-durable capacitors for stable power delivery
M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20° C for unthrottled transfer speeds and enhanced reliability
Next-gen connectivity: Intel Optane memory ready, Intel VROC support, dual M.2 support, and USB 3.2 Gen Type-C™


TECHNICAL SPECIFICATIONS



CPU
Intel Socket 2066 Core™ X-Series Processors * The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types * Refer to www.asus.com for CPU support list


Chipset
Intel X299


Memory
(Intel Core™ i9 10000 X-Series CPU) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory (Intel Core™ i9 9000/7000 and i7 9000 X-Series CPU) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).


Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology


Expansion Slots
48-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x1 *1 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x1 *1 28-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) *2 2 x PCIe 3.0/2.0 x1 *1 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode* * The Wi-Fi E key shares bandwidth with PCIEX1_1. * The Wi-Fi/BT module is purchased separately


Storage
Intel X299 Chipset: 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 8 x SATA 6Gb/s port(s)*5 Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports (Intel Core™ i9 10000 X-Series CPU): 2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology Enterprise supports (Intel Core™ i9 9000/7000 and i7 9000 X-Series CPU): 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology 15 support Intel Optane™ Memory Ready *6


LAN
Intel I219V, 1 x Gigabit LAN ASUS Turbo LAN Utility ASUS LAN Guard


Audio
Realtek S1220A 8-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature: - DTS X:Ultra - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs


USB Ports
ASMedia USB 3.2 Gen 2 controller: 1 x USB 3.2 Gen 2 front panel connector port(s) ASMedia USB 3.2 Gen 2 controller: 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s) (2 at back panel, Type-A + USB Type-CTM) Intel X299 Chipset: 8 x USB 3.2 Gen 1 port(s) (4 at back panel, 4 at mid-board) Intel X299 Chipset: 6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board)


Special Features
OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AI Overclocking ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment AURA: - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Addressable Gen 2 Header ASUS Exclusive Features: - USB BIOS Flashback - AI Suite 3 - Ai Charger - Onboard Button: Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - ASUS CrashFree BIOS 3 - Turbo LAN - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - BIOS Flashback Button ASUS Quiet Thermal Solution: - Stylish Fanless Design with M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Intel Virtual RAID on CPU (VROC) ready DIY Friendly Design - ProCool II - SafeSlot


Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback Button(s) 2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)


Internal I/O Ports
1 x AAFP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1 front panel TypeC™ connector 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x CPU_OV jumper 1 x Q-Code


Accessories
User s manual 1 x Vertical M.2 bracket set 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED


BIOS
128 Mb Flas

---
