Popis produktu

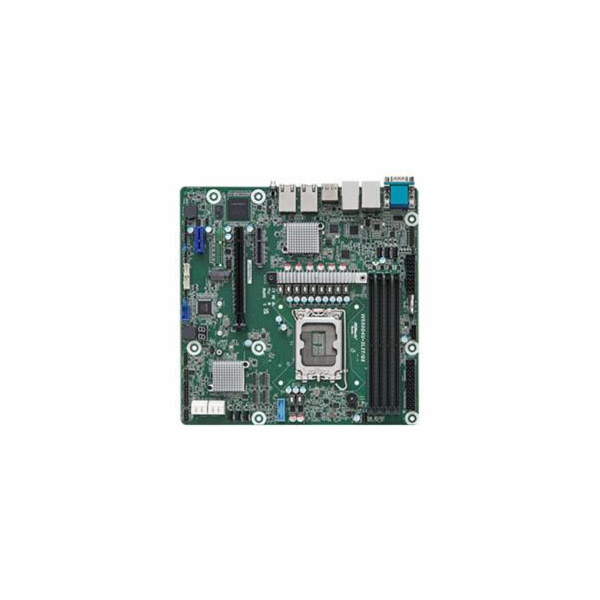

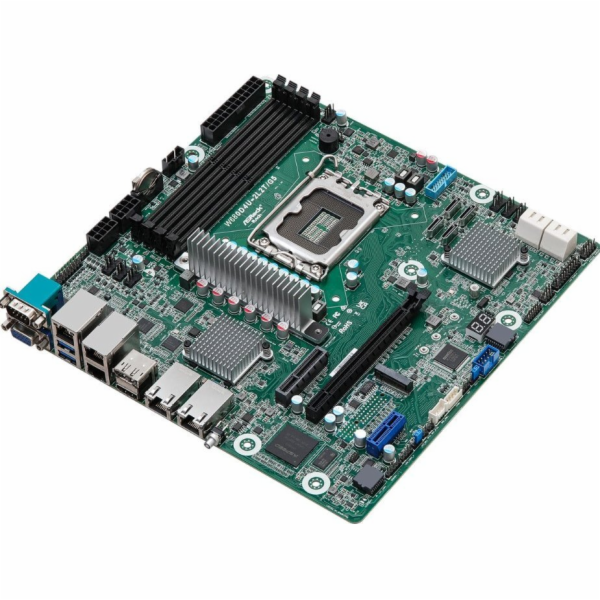

W680D4U-2L2T/G5






Micro-ATX (9.6" x 9.6")
Supports 12th & 13th Gen Intel ®  Core™ series processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
3 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
Supports 1 M.2 (PCIe3.0 x4)
2 RJ45 (10GbE) by Intel ®  X710
2 RJ45 (1GbE) by Intel ®  i210
Up to 8 SATA 6Gb/s
1 VGA, 1 HDMI, 1 DisplayPort
Remote Management (IPMI)


Specifications




 Physical Status


Form Factor
Micro-ATX


Dimensions
9.6'' x 9.6'' (244 mm x 244 mm)


 Processor System


CPU
Supports 12th & 13th Gen Intel ®  Core™ series processors


Socket
Single Socket LGA 1700


Thermal Design Power
125W


Chipset
Intel ®  W680


 System Memory


Supported DIMM Quantity
4 DIMM slots (2DPC)


Supported Type
DDR5 288-pin ECC/non-ECC UDIMM


Max. Capacity per DIMM
32GB


Max. DIMM Frequency
4400MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R)


Voltage
1.1V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
SLOT6: PCIe5.0 x16 [CPU]


PCIe x 4
SLOT7: PCIe4.0 x4 [CPU]


PCIe x 1
SLOT4: PCIe3.0 x1 [PCH]


 Other PCIe Expansion Connectors


M.2 slot
1 M-key (PCIe3.0 x4) [PCH]; support 2280/2260/2242/2230 form factor


OCuLink
1 OCuLink (PCIe4.0 x4) *  [CPU]
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
2 OCuLink (PCIe4.0 x4) [PCH]
* OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated.


 SATA/SAS Storage


PCH Built-in Storage
Intel W680 (up to 8 SATA 6Gb/s; RAID 0/1/5/10):
4 SATA 7-pin, 1 OCuLink


 Ethernet


Additional GbE Controller
2 RJ45 (10GbE) by Intel ®  X710
2 RJ45 (1GbE) by Intel ®  i210


 Server Management


BMC Controller
ASPEED AST2600: iKVM, vMedia support


IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F


 Graphics


Controller
ASPEED AST2600:
1 DB15 (VGA)
Intel ®  Integrated Processor Graphics:
1 HDMI, 1 DisplayPort


 Rear I/O


UID Button/LED
1 button w/ LED


VGA Port
1 DB15 (VGA), 1 HDMI, 1 DisplayPort


Serial Port
1 DB9 (COM)


USB 3.2 Gen1 Port
2 Type A (USB3.2 Gen1)


RJ45
2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI


 Internal Connector/Headers


Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)


Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus


System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED


VGA header
1


Speaker Header
1 (4-pin)


Buzzer
1


Fan Header
7 (4-pin)


Thermal Sensor Header
1


TPM Header
1 (13-pin, SPI)


SGPIO Header
1


SMBus header
1


PMBus header
1


IPMB Header
1


Clear CMOS
1 (contact pads)


Others
1 (4-pin, LAN3/LAN4 LED)


ME/SPS Recovery
1


USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)


USB 2.0 Header
1 (9-pin, 2 USB2.0)


NMI Header
1


 LED Indicators


Standby PWR LED 5vsb
1


80 Debug Port LED
1


Fan Fail LED
7


BMC heartbeat LED
1


 System BIOS


BIOS Type
AMI 256 Mb SPI Flash ROM


BIOS Features
Plug and Play (PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash


 Hardware Monitor


Temperature
CPU, MB, Card side, VR, M.2, X710, TR Temperature sensing


Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control


Voltage
3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, VCCGT, 1V8SB, VCCSA, BAT, 3V, 5V, 12V


 Supported OS


OS
Windows ®  10 (64bit)
Windows ®  11 (64 bit)


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

---
