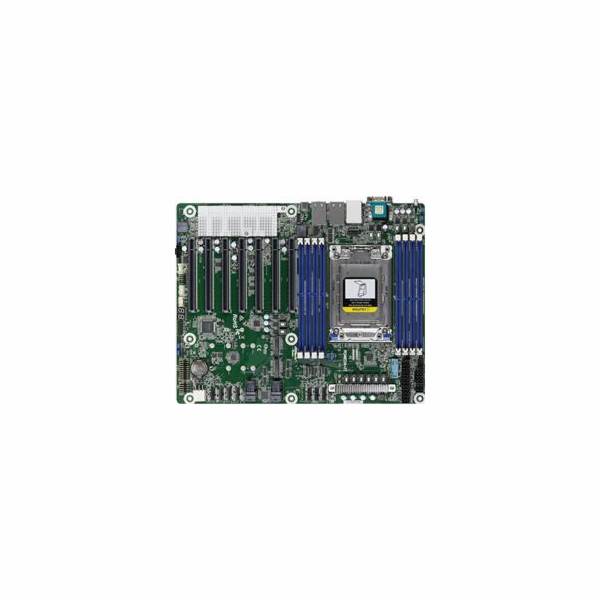

Popis produktu

ATX (12" x 9.6")
Single Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology * )/7002 series processors
8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
7 PCIe4.0 x16
2 OCuLink (PCIe4.0 x4)
Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
10 SATA 6Gb/s
2 RJ45 (10GbE) by Broadcom BCM57416
Remote Management (IPMI)


Specifications




 Physical Status


Form Factor
ATX


Dimensions
12'' x 9.6'' (305 mm x 244 mm)


 Processor System


CPU
Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology * )/7002 Series Processors

* A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology


Socket
Single Socket SP3 (LGA4094)


Chipset
System on Chip


 System Memory


Supported DIMM Quantity
8 DIMM slots (1DPC)


Supported Type
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N


Max. Capacity per DIMM
RDIMM: up to 64GB
LRDIMM: up to 128GB
RDIMM/LRDIMM-3DS: up to 256GB
NVDIMM-N: up to 32GB


Max. DIMM Frequency
RDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz


Voltage
1.2V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
SLOT7: PCIe4.0 x16
SLOT6: PCIe4.0 x16
SLOT5: PCIe4.0 x16
SLOT4: PCIe4.0 x16
SLOT3: PCIe4.0 x16
SLOT2: PCIe4.0 x16 or PCIe4.0 x8 + 1 M.2+1 miniSASHD or no PCIe SLOT +2 OCuLink+1 M.2+1 miniSAS HD (by jumper)
SLOT1: PCIe4.0 x16


 Other PCIe Expansion Connectors


M.2 slot
1 M-key *  (PCIe4.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor
1 M-key *  (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor
* Share with SLOT2 by jumper


OCuLink
2 OCuLink *  (PCIe4.0 x4)
* Shared with SLOT2 by jumper


 SATA/SAS Storage


PCH Built-in Storage
AMD EPYC 7003/7002 (10 SATA 6Gb/s):
2 Mini-SAS HD, 2 M.2


 Ethernet


Additional GbE Controller
1 Broadcom BCM57416: 2 RJ45 (10GbE)


 Server Management


BMC Controller
ASPEED AST2500


IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN


 Graphics


Controller
ASPEED AST2500


VRAM
DDR4 512MB


 Rear I/O


UID Button/LED
1


VGA Port
1 DB15


Serial Port
1 DB9


USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)


RJ45
2 RJ45 (10GbE)
1 dedicated IPMI


 Internal Connector/Headers


Power Connector
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V)


Auxiliary Panel Header
1 (includes chassis intrusion, location button & LED, and front LAN LED)


System Panel
1 (rst, pwrbtn, hddled, pwrled)


Speaker Header
1 (4-pin)


Fan Header
7 (6-pin) [1CPU/4Front/2Rear]


Thermal Sensor Header
2


TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)


SMBus header
1


PMBus header
1


IPMB Header
1


Clear CMOS
1 (contact pads)


USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)


NMI Header
1


 LED Indicators


Standby PWR LED 5vsb
1 (5VSB)


80 Debug Port LED
1


Fan Fail LED
7


BMC heartbeat LED
1


 System BIOS


BIOS Type
32MB AMI UEFI Legal BIOS


BIOS Features
Plug and Play (PnP), ACPI 6.3 Compliance Wake Up Events, SMBIOS 3.3.0, ASRock Rack Instant Flash


 Hardware Monitor


Temperature
CPU, MB, Card side, TR1, TR2 Temperature sensing


Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control


Voltage
Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB


 Supported OS


OS
Microsoft ®  Windows:
Server 2016 (64 bit)
Server 2019 (64 bit)

Linux:
RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit)
CentOs 8.0 (64 bit) / 7.6 ( 64 bit)
SUSE SLES 15.1 (64 bit) / 12.4 (64 bit)
UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit)
CITRIX Hypervisor 8.1

Virtual:
VMWare ®  ESXi 6.5 u3 / 6.7 u3
vSphere 6.5 u3/ / 6.7 u3

*  The SUSE Enterprise Linux Server 15.1 (64 bit) / 12.4 (64 bit) system only supports UEFI BOOT.
*  Please refer to our website for the latest OS support list.


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

---
