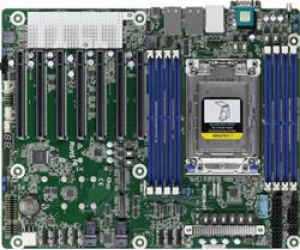

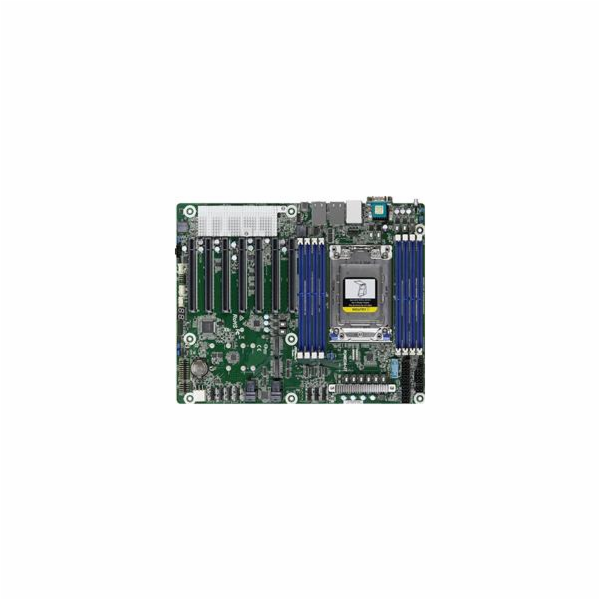

Popis produktu

    ATX 12'' x 9.6''
    Single Socket SP3 (LGA4094) support AMD EPYC™ 7002/7001 series processor family
    Supports 8 Channels DDR4 3200/2933/2666/2400 RDIMM,LRDIMM/NV DIMM 8 x DIMM slots
    Supports 8x SATA3 6.0 Gb/s (from 2x mini SAS HD), 1x SATA DOM(BOM option), and 2 x M.2
    Supports 2 X 10G LAN by Intel X550 -AT2
    Supports 7 PCIe 4.0x 16
    Supports 2 OCulink(share with PCIE2 by Jumper)


Specifications
 MB Physical Status
Form Factor - ATX
Dimensions - 12'' x 9.6'' (30.5 cm x 24.4 cm)
 Processor System
CPU - AMD EPYC™ 7002/7001 series processor family
- max 225W
Socket - Single Socket SP3 (LGA4094)
 System Memory
Capacity - 8 DIMM slots
Type - Eight Channel DDR4 memory technology
- Supports DDR4 RDIMM and LRDIMM
DIMM Size Per DIMM - RDIMM: 64GB*,32GB, 16GB, 8GB*
- LRDIMM: 256GB*,128GB, 64GB**
- NV DIMM:32GB***

*64GB wait device to validate
**256GB wait device to validate
***wait device to validate
DIMM Frequency - RDIMM: 3200/2933/2666/2400MHz
- LRDIMM: 3200/2933/2666/2400MHz
- NV DIMM: 3200/2666/2400MHz*

*wait device to validate
Voltage - 1.2V
 Expansion Slot
PCIe 4.0 x 16 - PCIE1: Gen4 x16 link
- PCIE2: Gen4 x16 link or Gen4x8 link+2x M.2+2x miniSASHD or no PCIE slot +2x OCulink+2xM.2+2x miniSASHD(by jumper)
- PCIE3: Gen4 x16 link
- PCIE4: Gen4 x16 link
- PCIE5: Gen4 x16 link
- PCIE6: Gen4 x16 link
- PCIE7: Gen4 x16 link
 Storage
SATA Controller - 8 x SATA3 6.0 Gb/s (SATA_0_3:by miniSASHD.SATA_3 share with SATA_8(by BOM option), SATA_4_7: by miniSASHD,share with PCIE2 by Jumper)
OCuLink for U.2 - 2( OCU1 & OCU2, share with PCIE2 by Jumper)
 Ethernet
Interface - 10000/1000 /100 Mbps by Intel® X550-AT2
LAN Controller - 2 x RJ45 10G base-T by Intel® X550-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy E_cient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
 Management
BMC Controller - ASPEED AST2500
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
 Graphics
Controller - ASPEED AST2500
VRAM - DDR4 512MB
 Rear Panel I/O
VGA Port - 1 x D-Sub
USB 3.1 Gen1 Port - 2
USB 3.1 Gen2 Port - 1(Type C)
Lan Port - 2+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 x COM port
UID Button/UID LED - 1
 Internal Connector
SATA DOM - 1(BOM option)
M.2 - 2(M2_1(share with PCIE2 by Jumper): 2230/2242/2260/2280, SATA/PCIE Gen4(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4))
Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, and front LAN LED)
TR1 Header - 1
TPM Header - 1
IPMB Header - 1
Fan Header - 7 Fans x 6-pin (1CPU/4Front/2Rear)
ATX Power - 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot)
USB 3.1 (Gen1) Header - 1 (supports 2 USB 3.0 ports)
USB 3.1 (Gen2) Header - 1 (supports 2 USB 3.0 ports)
NMI Button - 1
Front Panel - 1(rst, pwrbtn, hddled, pwrled)
Speaker Header - 1(4pin)
BMC_SMB Header - 1
Clear CMOS - 1
PSU SMB Header - 1
 Onboard LED
Fan Fail LED - 7
 System BIOS
BIOS Type - 32MB AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
 Hardware Monitor
Temperature - CPU Temperature Sensing
- MB/TR1/Card side Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.





---
