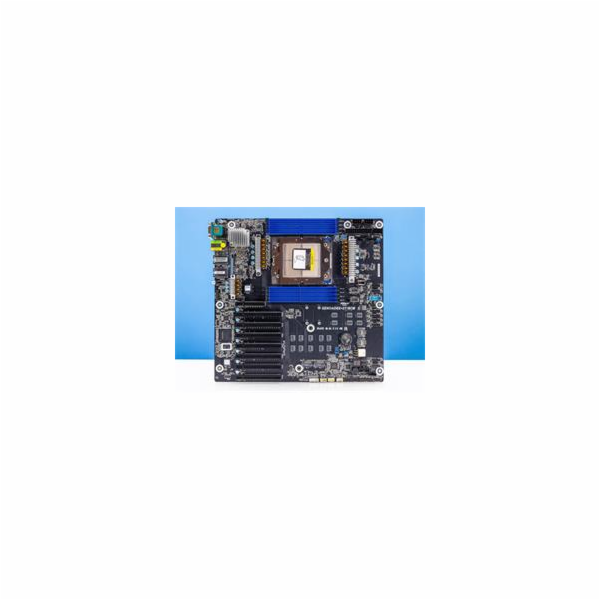

Popis produktu

SPECIFICATIONS




 Physical Status


Form Factor
EEB


Dimensions
12.63" x 13"


 Processor System


CPU
Supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors


Socket
Single Socket SP5 (LGA 6096)


Chipset
System on Chip


 System Memory


Supported DIMM Quantity
8 DIMM slots (1DPC)


Supported Type
Supports DDR5 288-pin RDIMM, RDIMM-3DS


Max. Capacity per DIMM
RDIMM: 96GB (2R)
RDIMM-3DS: 512GB (2S8Rx4)


Max. DIMM Frequency
4800 MHz


Voltage
1.1V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
SLOT6: PCIe5.0 / CXL1.1 x16
SLOT5: PCIe5.0 x16
SLOT4: PCIe5.0 / CXL1.1 x16
SLOT3: PCIe5.0 x16
SLOT2: PCIe5.0 / CXL1.1 x16
SLOT1 * : PCIe5.0 x16
SLOT0: PCIe5.0 / CXL1.1 x16

* SLOT1 shared lanes with 1 MCIO and 1 M.2. SLOT1 auto-switch to PCIe5.0 x8 when either 1 MCIO or 1 M.2 populated.


PCIe x 8
SLOT7 * * : PCIe5.0 x8

* * SLOT7 share lanes with 2 MCIO. When SLOT7 occupied, 1 MCIO will not function and 1 MCIO can be enabled by jumper setting. When selecting 1 MCIO, SLOT7 will switch to PCIex4.


 Other PCIe Expansion Connectors


M.2 slot
1 M-key (PCIe5.0 x4 or 4 SATA 6Gb/s), supports 22110/2280 form factor
1 M-key *  (PCIe5.0 x4), supports 22110/2280 form factor


Others
2 MCIO * *  (PCIe5.0 x4 or 4 SATA 6Gb/s)
1 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s)
1 MCIO *  (PCIe5.0 x4)


 SATA/SAS Storage


PCH Built-in Storage
AMD EPYC 9004 (16 SATA 6Gb/s):
3 MCIO, 4 SATA via optional M2U2_HD_G4 M.2 device


 Ethernet


Additional GbE Controller
Broadcom BCM57416: 2 RJ45 (10GbE)


 Server Management


BMC Controller
ASPEED AST2600


IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN


 Graphics


Controller
ASPEED AST2600


VRAM
DDR4 512MB


 Rear I/O


UID Button/LED
1 UID button w/ LED


VGA Port
1 DB15 (VGA)


Serial Port
1 DB9 (COM)


USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)


RJ45
2 RJ45 (10GbE)
1 dedicated IPMI


 Internal Connector/Headers


Power Connector
1 (24-pin, ATX main power), 3 (8-pin, ATX 12V)


Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus


System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED


COM Header
1


VGA header
1


Speaker Header
1 (4-pin)


Fan Header
8 (6-pin)


Thermal Sensor Header
1


TPM Header
1 (13-pin, SPI)


SMBus header
1


PMBus header
1


IPMB Header
1


Clear CMOS
1 (contact pads)


USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)


NMI Header
1


 LED Indicators


Standby PWR LED 5vsb
1 (5VSB)


80 Debug Port LED
1


Fan Fail LED
8


BMC heartbeat LED
1


 System BIOS


BIOS Type
AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM


BIOS Features
ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)


 Hardware Monitor


Temperature
CPU, MB, TR1 Temperature sensing


Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control


Voltage
VCORE,VCCSA,VCCM,3V, 5V, 12V, +1.05V_PCH_AUX,+BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP


 Supported OS


OS
Microsoft ®  Windows:
- Server 2019 (64 bit)
- Server 2022 (64 bit)

Linux:
- RedHat Enterprise Linux Server 8.6 (64 bit) / Server 8.7 (64 bit) / Server 9.0 (64 bit) / Server 9.1 (64 bit)
- SUSE SLES 15.4(64 bit)
- UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit)

Hypervisor::
- VMWare ®  ESXi/ 7.0 U3i / 8.0
- CITRIX Hypervisor 8.2.1


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. ASRock Rack is the official trademark for ASRock Rack Inc., all the covers need to remain the original brand name without any modification. All other brands, names and trademarks are the property of their respective owners.

---
