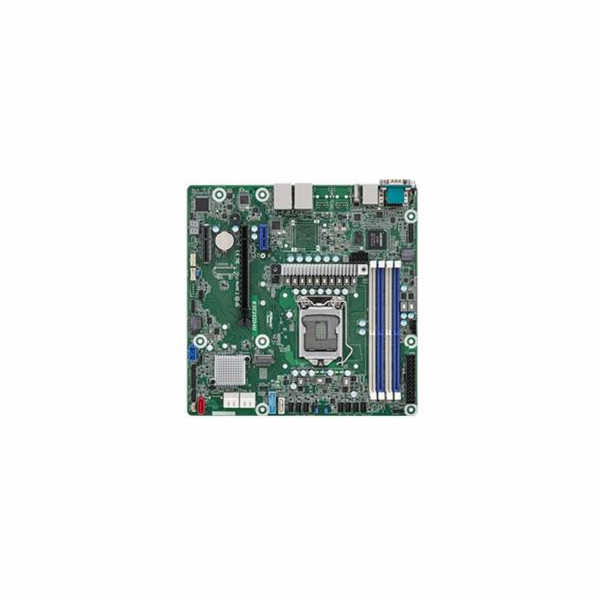

E3C252D4U






Micro-ATX (9.6" x 9.6")
Supports Intel ®  Xeon ®  E-2300 and 10th Gen Intel ®  Pentium ®  series processors
4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
Supports 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s)
6 SATA 6Gb/s
2 RJ45 (1GbE) by Intel ®  i210
VGA, HDMI
Remote Management (IPMI)




Specifications






 Physical Status


Form Factor
Micro-ATX


Dimensions
9.6'' x 9.6'' (244 mm x244 mm)


 Processor System


CPU
Supports Intel ®   Xeon ®   E-2300 and 10th Gen Intel ®   Pentium ®   series processors


Socket
Single Socket H5 (LGA1200)


Chipset
Intel ®   C252


 System Memory


Supported DIMM Quantity
4 DIMM slots (2DPC)


Supported Type
Supports DDR4 288-pin ECC/non-ECC UDIMM


Max. Capacity per DIMM
ECC/non-ECC UDIMM: up to 32GB


DIMM Frequency
ECC/non-ECC UDIMM: max. 3200 * MHz
* Up to DDR4 2666MHz when installing 10th Gen Intel ®   Pentium ®   Series Processors


Voltage
1.2V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
SLOT6: PCIe4.0 *   x16 [CPU]
* When installing 10th Gen Intel ®   Pentium ®   Series Processors, SLOT6 supports PCIe3.0 only and SLOT4 will not function


PCIe x 4
SLOT4: PCIe4.0 *   x4 [CPU]


PCIe x 1
SLOT7: PCIe3.0 x1 [PCH]


 Other PCIe Expansion Connectors


M.2 slot
1 M-key *   (PCIe3.0 x2 or SATA 6Gb/s); support 22110/2280/2260 form factor [PCH]
* SATA0 will be disabled when M2_1 populated with SATA device


 SATA/SAS Storage


PCH Built-in Storage
Intel ®   C252 (6 SATA 6Gb/s; RAID 0/1/5/10):
5 SATA 7-pin, 1 SATA DOM or 1 M.2


 Ethernet


Additional GbE Controller
Intel ®   i210: 2 RJ45 (1GbE)


 Server Management


BMC Controller
ASPEED AST2500


IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN


 Graphics


Controller
ASPEED AST2500


VRAM
DDR4 256MB


 Rear I/O


UID Button/LED
1 button w/ LED


VGA Port
1 DB15


Serial Port
1 DB9


USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)


RJ45
2 RJ45 (1GbE)


Dedicate LAN
1 dedicated IPMI LAN port


HDMI
1 HDMI


 Internal Connector/Headers


Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus


System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED


Video output
1


Speaker Header
1


Buzzer
1


Fan Header
7 (4-pin)


Thermal Sensor Header
1


TPM Header
1 (13-pin, SPI)


SGPIO Header
1


SMBus header
1


PMB header
1


IPMB Header
1


Clear CMOS
1 (contact pads)


USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)


USB 2.0 Header
1 (9-pin, 2 USB2.0)


NMI Header
1


Power Connector
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V)


ME/SPS Recovery
1


 LED Indicators


Standby PWR LED 5vsb
1


80 Debug Port LED
1


Fan Fail LED
7


BMC heartbeat LED
1


 System BIOS


BIOS Type
AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM


BIOS Features
Plug and Play, ACPI 6.2 compliance wake up events, SMBIOS 3.3, ASRock Rack instant flash


 Hardware Monitor


Temperature
CPU, MB, Card side, TR1


Fan
Fan Tachomete, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Multi-Speed Control


Voltage
+12V, +5V, +3.3V, CPU Vcore, DRAM,V1.0M,+BAT, 3VSB, 5VSB


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

---
