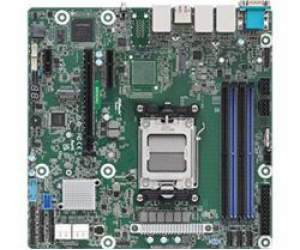

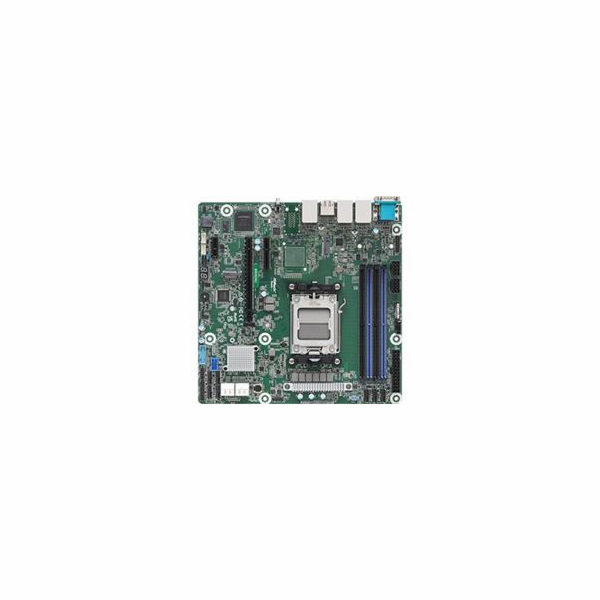

Popis produktu

Micro-ATX (9.6"x 9.6")
Support AMD Ryzen 7000 series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
2 RJ45 (1GbE) by Intel ®  i210
4 SATA 6Gb/s
1 HDMI, 1 DisplayPort
Remote management (IPMI)


Specifications




 Physical Status


Form Factor
Micro-ATX


Dimensions
9.6" x 9.6"


 Processor System


CPU
Supports AMD Ryzen 7000 series Processors


Socket
Single Socket AM5 (LGA 1718)


Thermal Design Power
120W (Air)/170W (Liquid)


Chipset
AMD B650E


 System Memory


Supported DIMM Quantity
4 DIMM slots (2DPC)


Supported Type
DDR5 288-pin ECC/non-ECC UDIMM


Max. Capacity per DIMM
32GB


Max. DIMM Frequency
5200 MHz (1DPC); 3600 MHz (2DPC)


Voltage
1.1V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
SLOT6: PCIe5.0 x16 [CPU]


PCIe x 4
SLOT7: PCIe5.0 x4 [CPU]


PCIe x 1
SLOT4: PCIe4.0 x1 [FCH]


 Other PCIe Expansion Connectors


M.2 slot
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]


 SATA/SAS Storage


PCH Built-in Storage
AMD B650E (4 SATA 6Gb/s):
4 SATA 7-pin


 Ethernet


Additional GbE Controller
Intel ®  i210: 2 RJ45 (1GbE)


 Server Management


BMC Controller
ASPEED AST2600


IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN


 Graphics


Controller
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort


 Rear I/O


UID Button/LED
1 UID button w/ LED


VGA Port
1 DB15 (VGA), 1 DisplayPort, 1 HDMI


Serial Port
1 DB9 (COM)


USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)


RJ45
2 RJ45 (1GbE)
1 dedicated IPMI


 Internal Connector/Headers


Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)


Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN activity LED


System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED


VGA header
1


Speaker Header
1


Buzzer
1


Fan Header
7 (6-pin)


TPM Header
1 (13-pin, SPI)


SMBus header
1


PMBus header
1


IPMB Header
1


Clear CMOS
1


Others
1 (3-pin, 80 debug port header)


 LED Indicators


Standby PWR LED 5vsb
1 (5VSB)


80 Debug Port LED
1


Fan Fail LED
7


BMC heartbeat LED
1


 System BIOS


BIOS Type
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM


BIOS Features
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5


 Hardware Monitor


Temperature
CPU, DDR, MB, Card Side, Chipset, M.2 slot


Fan
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)


Voltage
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

---
