Popis produktu

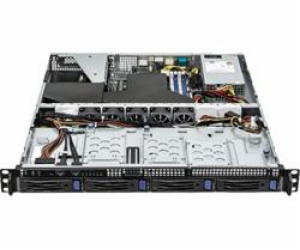

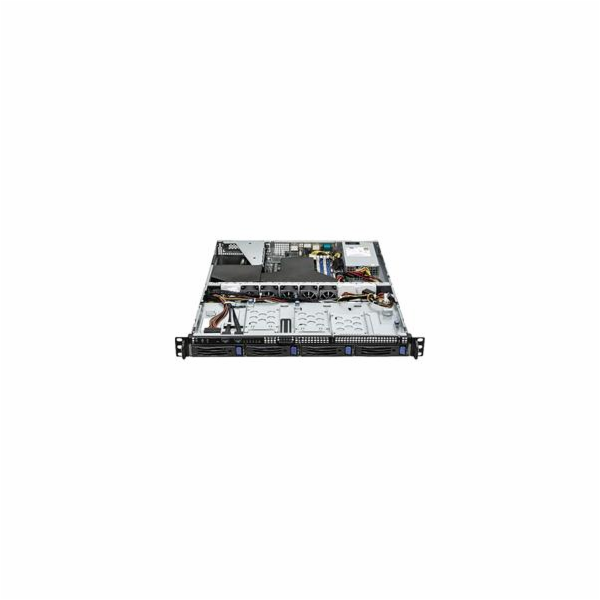

1U4LW-B650/2L2T






1U Rackmount with 1, 80-PLUS Gold, 400W PSU
Single Socket AM5 (LGA 1718), supports AMD Ryzen 7000 series processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
4 hot-swap 3.5" SATA drive bays
1 FH PCIe4.0 x16
Supports 1 M.2 (PCIe5.0 x4)
2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel ®  i210
1 HDMI, 1 DisplayPort
Remote Management (IPMI




Specifications




 System


Form Factor
1U Rackmount


Dimensions
533.4 x 438 x 44.4 mm (21'' x 17.2'' x 1.75'')


Support MB
B650D4U-2L2T/BCM


 Front Panel


Buttons
Power w/ LED, UID w/LED, System reset


LEDs
LANs, HDD activity, System health


I/O Ports
2 Type-A (USB3.2 Gen1)


 External Drive Bay / Storage


Front Side Drive Bay
4 Hot-swap 3.5" SATA drive bays


Internal Side
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]


 Power Supply


Type
Single PSU


Output Watts
400W


Efficiency
80-PLUS Gold


 System Fan


Fan
5 PWM Hot-swap 40x28 mm fans


 Processor System


CPU
Supports AMD Ryzen 7000 series Processors


Socket
Single Socket AM5 (LGA 1718)


Thermal Design Power
Up to 170W  * Based on Cinebench R23 tool to meet AMD criteria


Chipset
AMD B650


 System Memory


Supported DIMM Quantity
4 DIMM slots (2DPC)


Supported Type
DDR5 288-pin ECC/non-ECC UDIMM


Max. Capacity per DIMM
32GB


Max. DIMM Frequency
5200 MHz (1DPC); 3600 MHz (2DPC)


Voltage
1.1V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4


 Ethernet


Additional GbE Controller
Broadcom BCM57416: 2 RJ45 (10GbE)
Intel ®  i210: 2 RJ45 (1GbE)


 Server Management


BMC Controller
ASPEED AST2600


IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN


 Graphics


Controller
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort


 Rear I/O


UID Button/LED
1 UID button w/ LED


VGA Port
1 DB15 (VGA), 1 DisplayPort, 1 HDMI


Serial Port
1 DB9 (COM)


USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)


RJ45
2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI


 System BIOS


BIOS Type
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM


BIOS Features
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5


 Hardware Monitor


Temperature
CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot


Fan
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)


Voltage
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.





---
