Popis produktu

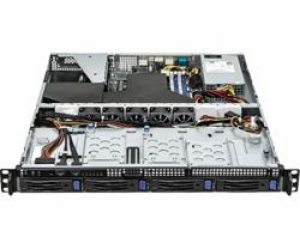

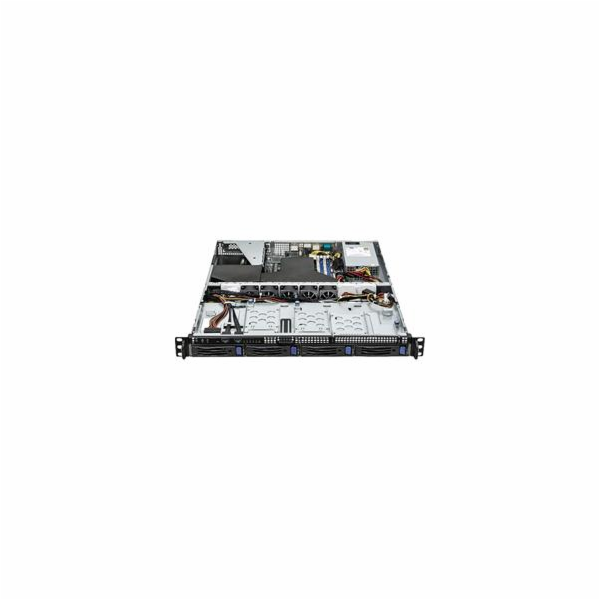

1U4LW-X570






1U Rackmount with 400W PSU
supports AMD Ryzen 5000 Series Desktop Processors
4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each
4 Hot-swap 3.5" HDD/SSD bays, 3 fixed 2.5" HDD/SSD bays
1 FHHL PCIe4.0 x16
2 RJ45 (1GbE) by Intel ®  i210
Remote management (IPMI)






Specifications




 System


Form Factor
1U Rackmount


Dimensions
533.4 x 482.6 x 44.4 mm (21” x 19” x 1.75”)


Support MB
X570D4U


 Front Panel


Buttons
Power button w/ LED, UID w/LED, System reset


LEDs
LANs, HDD activity, System health


I/O Ports
2 Type-A (USB 3.2 Gen1)


 External Drive Bay / Storage


Front Side Drive Bay
4 Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays
1 Slim ODD (BTO)


Internal Side
3 fixed 2.5" HDD/SSD (SATA 6Gb/s) bays
1 M-key (PCIe4.0 *  x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0 *  x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570]
* Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics


 Power Supply


Type
Single PSU


Output Watts
400W


Efficiency
80-Plus Gold


AC Input
100-240V, 50-60Hz


 System Fan


Fan
5 PWM Easy-swap 40x28 mm fans


 Processor System


CPU
Supports:
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors


Socket
AM4 PGA 1331


Chipset
AMD X570


 System Memory


Supported DIMM Quantity
4 DIMM slots (2DPC)


Supported Type
Supports DDR4 288-pin ECC * /non-ECC UDIMM
* For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.


Max. Capacity per DIMM
up to 32GB


Max. DIMM Frequency
up to 3200 MHz *
*  AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz


Voltage
1.2V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
Supports 1 FHHL PCIe4.0 x16 *  via RB1UX16_G4
* Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics
* Supports PCIe3.0 x16 when using AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics


 Server Management


BMC Controller
ASPEED AST2500


IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN


 Graphics


Controller
ASPEED AST2500:
1 DB15 (VGA)
AMD Ryzen Desktop Processors with Radeon Graphics:
1 HDMI


VRAM
DDR4 16MB


 Rear I/O


UID Button/LED
1


VGA Port
1 D-Sub


Serial Port
1


USB 3.2 Gen2 Port
2 Type-A (USB3.2 Gen2)


RJ45
2 RJ45(1GbE) by Intel ®  i210
1 dedicated IPMI


 System BIOS


BIOS Type
32MB AMI UEFI Legal BIOS


BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash


 Environment


Temperature
Operation temperature: 10°C ~ 35°C *  / Non operation temperature: -40°C ~ 70°C


Humidity
- Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.





---
