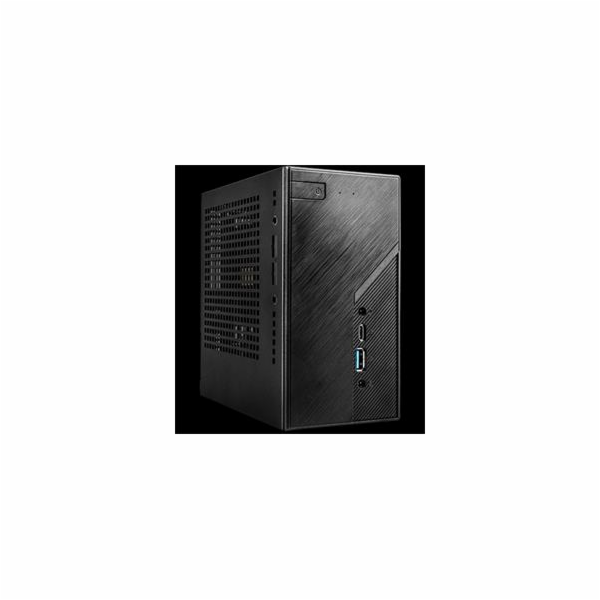

ASRock mini B660 DESKMINI B660/B/BB/BOX ASRock mini PC B660 1x LGA1700 (65W),2x SODIMM DDR4, 2xM.2+2x 2,5 SATA,1Gb LAN, HDMI, DP, VGA, 120W
ASRock mini B660 DESKMINI B660/B/BB/BOX ASRock mini PC B660 1x LGA1700 (65W),2x SODIMM DDR4, 2xM.2+2x 2,5 SATA,1Gb LAN, HDMI, DP, VGA, 120W
6118 Kč
5056 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: DESKMINI B660/B/BB/BOX
Kód produktu: 98234132
Výrobce: ASRock
Váha: 3 kg
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Supports 12th Gen Intel Core™ Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Multi Video Outputs:2 x DisplayPort, HDMI & D-Sub
1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
1 x Blazing M.2 (PCIe Gen5 x4) Slot
1 x Hyper M.2 (PCIe Gen4 x4) Slot
2 x 2.5" HDD/SSD with RAID 0/1
1 x M.2 Key-E for Wi-Fi
DeskMini B660
CPU
- Supports 12th Gen Intel ® Core™ Processors (LGA1700), Max. TDP 65W
Cooler
- Supports Intel ® CPU Cooler (Max. Height ? 47mm)
Memory
- Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
Chipset
- Intel ® B660
Graphics
- HDMI (4K@60Hz)
- DisplayPort 1.4
- DisplayPort 1.4 (over USB Type-C Alt Mode)
- D-Sub
* Supports up to 4 displays simultaneously
Audio
- Realtek ALC269 Audio Codec
Storage
- 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
* Supports Intel ® Optane™ Technology
Supports NVMe SSD as boot disks
Supports Intel ® Volume Management Device (VMD)
LAN
- Gigabit LAN (Intel ® I219V)
WLAN
- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel ® CNVi (Integrated Wi-Fi/BT)
Front I/O
- 1 x MIC-In
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x Head Phone with MIC Jack
Rear I/O
- 1 x DC-In Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
- 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED
Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Audio Header (4-Pin)
Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
Dimension
- 155 x 155 x 80 mm (1.92L)
OS
- Microsoft ® Windows ® 10 64-bit / 11 64-bit
Popis produktu
DeskMini B660 SeriesSupports 12th Gen Intel Core™ Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Multi Video Outputs:2 x DisplayPort, HDMI & D-Sub
1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
1 x Blazing M.2 (PCIe Gen5 x4) Slot
1 x Hyper M.2 (PCIe Gen4 x4) Slot
2 x 2.5" HDD/SSD with RAID 0/1
1 x M.2 Key-E for Wi-Fi
DeskMini B660
CPU
- Supports 12th Gen Intel ® Core™ Processors (LGA1700), Max. TDP 65W
Cooler
- Supports Intel ® CPU Cooler (Max. Height ? 47mm)
Memory
- Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
Chipset
- Intel ® B660
Graphics
- HDMI (4K@60Hz)
- DisplayPort 1.4
- DisplayPort 1.4 (over USB Type-C Alt Mode)
- D-Sub
* Supports up to 4 displays simultaneously
Audio
- Realtek ALC269 Audio Codec
Storage
- 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
* Supports Intel ® Optane™ Technology
Supports NVMe SSD as boot disks
Supports Intel ® Volume Management Device (VMD)
LAN
- Gigabit LAN (Intel ® I219V)
WLAN
- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel ® CNVi (Integrated Wi-Fi/BT)
Front I/O
- 1 x MIC-In
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x Head Phone with MIC Jack
Rear I/O
- 1 x DC-In Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
- 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED
Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Audio Header (4-Pin)
Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
Dimension
- 155 x 155 x 80 mm (1.92L)
OS
- Microsoft ® Windows ® 10 64-bit / 11 64-bit
