Aruba Instant On 1430 5G Switch
Aruba Instant On 1430 5G Switch
900 Kč
744 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: R8R44A.
Kód produktu: 98963172
Výrobce: Hewlett Packard Enterprise
Váha: 0,599 kg
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu

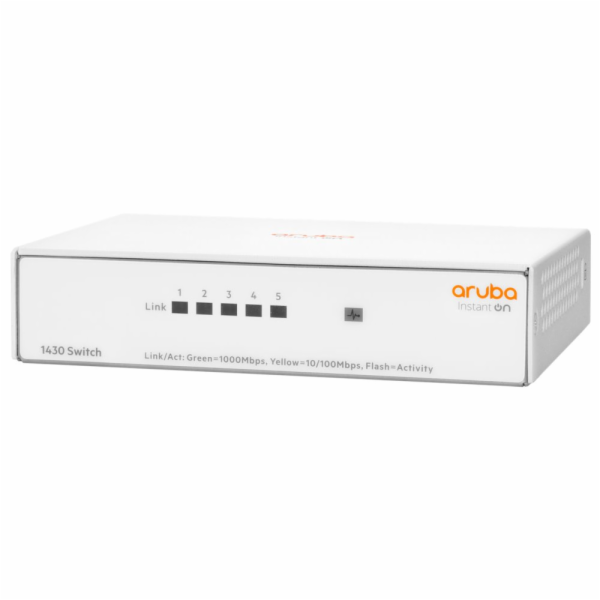

Aruba Instant On 1430 5G Switch (R8R44A)
I/O ports and slots
5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Dimensions
93(d) x 116(w) x 26(h) mm
Weight
0.60 lb (0.27 kg)
Processor and Memory
2Kb EEPROM; Packet buffer size: 1.0 Mb
Performance
100 Mb latency
< 3.81Î1Sec
1000 Mb latency
< 0.93 Î1Sec
Throughput (Mpps)
7.44 Mpps
Capacity
10 Gbps
MAC address table size
8192 entries
Reliability MTBF (years)
525.8
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity
15% to 90% @ 149°F (65°C) non-condensing
Altitude
up to 10,000 ft (3 km)
Acoustics
Fanless
Frequency
50Hz/60Hz
AC voltage
100-240VAC
Current
0.3A (12VDC - 1A)
Maximum power rating
12W
Idle power
1W
PoE power
-
Power Supply
External Power Adapter
Safety
EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
EN/IEC 60825- 1:2014 Class 1
Emissions
EN 55032:2015/ CISPR 32, Class B
FCC CFR 47 Part 15: 2018, Class B
CES-003, Class B
VCCI-32, Class B
CNS 13438, Class B
KS C 9832, Class B
AS/NZS CISPR 32, Class B
Immunity
BS/EN 55035, CISPR 35, KS C 9835
Generic
EN 55035, CISPR 35
EN
EN/IEC 61000-4-2
ESD
EN/IEC 61000-4-3
Radiated
EN/IEC 61000-4-4
EFT/Burst
EN/IEC 61000-4-5
Surge
EN/IEC 61000-4-6
Conducted
EN/IEC 61000-4-8
Power frequency magnetic field
EN/IEC 61000-4-11
Voltage dips and interruptions
EN/IEC 61000-3-2
Harmonics
EN /IEC 61000-3-3
Device Management
Unmanaged
Mounting
Mounting positions and supported racking
Supports table-top mounting
Supports wall-mounting with ports facing either up or down using base surface mounting holes
Supports under-table mounting using base surface mounting holes
Popis produktu
