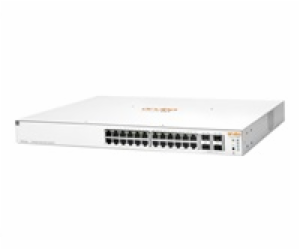

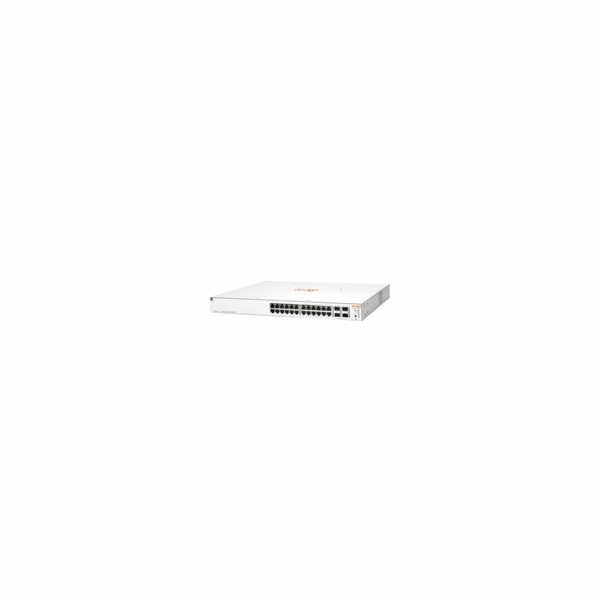

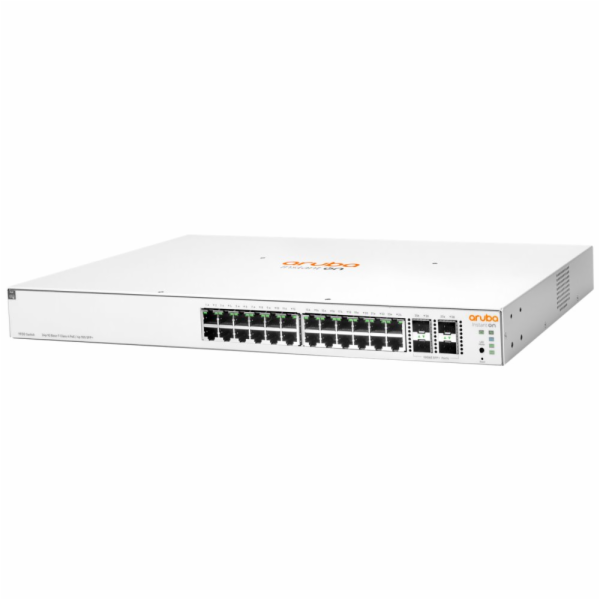

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
7330 Kč
6057 Kč bez DPH
Dostupnost: Dodání 3 dny
Part no.: JL683B#ABB
Kód produktu: 108819922
Výrobce: Hewlett Packard Enterprise
Váha: 4,9 kg
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683B)
I/O Ports and Slots
24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports
Physical Characteristics
Dimensions
17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm)(1U height)
Weight
7.69lb (3.49kg)
Processor and Memory
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Packet Buffer
1.5 MB
Performance
100 Mb latency
< 4.7 uSec
1000 Mb latency
10000 Mb latency
Throughput (Mpps)
95.23 Mpps
Capacity
128 Gbps
Routing table size (# of static entries)
32
MAC address table size (# of entries)
16,000
Reliability MTBF (years)
76
Environment
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C)
Non-operating temperature
-40°F to 158°F (-40°C to 70°C)
Non-operating relative humidity
15% to 95% @ 140°F (60°C)
Altitude
Up to 10,000ft (3.048 Km)
Acoustic 1
LWAd = 3.9 Bel
LpAm (Bystander) = 25 dB
Notes: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
Electrical Characteristics
Frequency
50-60 Hz
AC voltage
100 - 127 / 200 - 240 VAC
Current
2.8 A/1.4 A
Maximum power rating
248.7W
Idle power
19.7W
PoE power
195 W Class 4 PoE
Power supply
Internal power supply
Safety
UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Immunity
Generic
CISPR 24 / CISPR 35
EN
EN 55024:2010 / EN 55035:2017
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
Harmonics
IEC 61000-3-2, EN 61000-3-2
Flicker
IEC 61000-3-3, EN 61000-3-3
Device Management
Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rackmounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Transceivers
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A)
Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
Aruba Instant On 10G SFP+ to SFP+ 1m DAC (R9D19A)
Aruba Instant On 10G SFP+ to SFP+ 3m DAC (R9D20A)
Aruba Instant On 1930 Switch Series
High-Performance, Smart-Managed Switches Designed with Small Businesses in Mind
Whether you own a cafe, a design firm or a tech startup, a reliable and secure network plays a critical role in the success of your business. And you need a network solution that gives you peace of mind, allowing you to focus on growing your business instead of managing problems with your network. Aruba Instant On makes it easy to keep network users happy, mobile and IoT devices connected, and your network secure.
The Aruba Instant On 1930 switches features advanced, smart-managed, fixed- configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They re made to handle today s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.
Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What s more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.
Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees.
Key Features
Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24-and 48-port for non-PoE and Class 4 PoE models
PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks
Two (2) dedicated 1G SFP fiber ports on 8-port models, and four (4) dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network
Security controls let you define access in each area of your network, keeping your business data safe
Convenient mobile app and web- based GUI for set up, management and troubleshooting.
Standard Features
Simplicity at Its Best
Plug-and-play switches that work together with Instant On APs right out of the box
Mobile app to easily setup, monitor and manage your network
Security You Can Count On
Protect your network from unauthorized access with IEEE 802.1X and VLANs
Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks
We ve Got You Covered
No extra licensing or subscription fees
Industry-leading limited lifetime warranty and support.
The Instant On Differentiators
Easy Setup and Management
The Aruba Instant On mobile app allows you to set up, manage, and monitor Instant On switches and access points directly from your phone. Within the app, you get guided step-by-step instructions to install Instant On devices to get your network up and running quickly - no technical expertise required. And cloud-based access allows you to access the network from anywhere, at any time.
Non-intrusive, Aesthetic Design
Aruba Instant On switches are designed to complement the sleek and clean look of the Instant On access points, and to blend discreetly into your site s environment. The 8-port models, as well as the 24- and 48-port non PoE models, are fan-less, making them ideal for quiet office deployments.
High Performance with Flexible Options
The series consists of four (4) Class 4 PoE switches, and three (3) non-PoE switches including 8- 24- and 48-port Gigabit Ethernet switches. The two (2) dedicated 1G SFP fiber ports on 8-port models, and four (4) dedicated 1G/10G SFP+ fiber ports on 24-/48-port models, ensure high performance and eliminate traffic bottlenecks across the network. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 IPv4 static routing, ACLs, and Spanning Tree Protoco
Popis produktu
