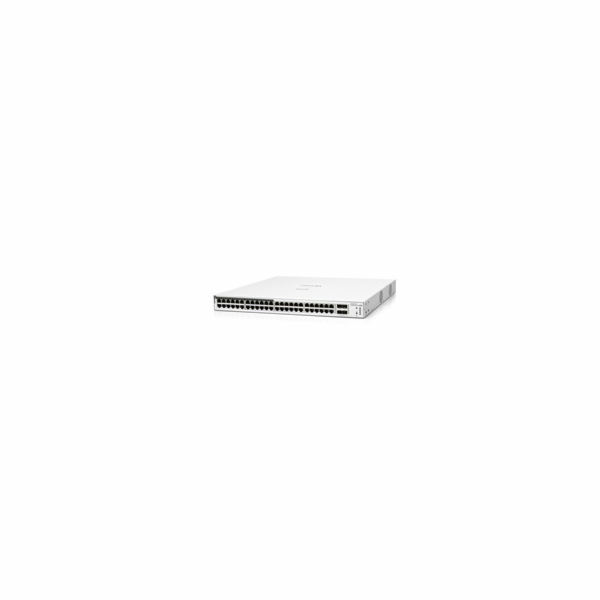

Aruba Instant On 1830 48G 4SFP 370W Switch (24x RJ45 10/100/1000 24x Class4 PoE)
Aruba Instant On 1830 48G 4SFP 370W Switch (24x RJ45 10/100/1000 24x Class4 PoE)
14889 Kč
12305 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: JL815A.
Kód produktu: 96285076
Výrobce: Hewlett Packard Enterprise
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Aruba Instant On 1830 8G Switch
(JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch
(JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
(JL813A)
Aruba Instant On 1830 48G 4SFP Switch
(JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
(JL815A)
I/O ports and slots
8 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
8 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
24 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports
24 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports
48 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP 1GbE ports
48 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP 1GbE ports
Physical Characteristics
Dimensions
157.0(d) x 173.0(w) x 39.1(h) mm
195.1(d) x 245.1(w) x 43.9(h) mm
215.9(d) x 443.0(w) x 43.9(h) mm
253.0(d) x 443.0(w) x 43.9(h) mm
253.0(d) x 443.0(w) x 43.9(h) mm
351.0(d) x 443.0(w) x 43.9(h) mm
Weight
1.70 lb (0.77 kg)
3.40 lb (1.54 kg)
5.50 lb (2.49 kg)
7.65 lb (3.47 kg)
7.80 lb (3.54 kg)
10.90 lb (4.94 kg)
Processor and Memory
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz,
512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
"RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
Aruba Instant On 1830 8G Switch
(JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch
(JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
(JL813A)
Aruba Instant On 1830 48G 4SFP Switch
(JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
(JL815A)
Performance
100 Mb latency
< 5.2 uSec
< 5.2 uSec
< 5.2 uSec
< 5.2 uSec
< 5.2 uSec
< 5.2 uSec
1000 Mb latency
< 2.8 uSec
< 2.8 uSec
< 2.8 uSec
< 2.8 uSec
< 2.8 uSec
< 2.8 uSec
10000 Mb latency
n/a
n/a
n/a
n/a
n/a
n/a
Throughput (Mpps)
11.90 Mpps
11.90 Mpps
38.68 Mpps
38.68 Mpps
77.37 Mpps
77.37 Mpps
Capacity
16 Gbps
16 Gbps
52 Gbps
52 Gbps
104 Gbps
104 Gbps
MAC address table size (# of entries)
8,000 entries
8,000 entries
16,000 entries
16,000 entries
16,000 entries
16,000 entries
Reliability MTBF (years)
188.2
105.9
203.6
96.6
114.4
83.5
Environment
Operating temperature
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
Nonoperating/ storage temperature
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
Nonoperating/ storage relative humidity
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
Altitude
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
Acoustics 1
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB
Notes: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
100% traffic
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB
100% traffic / 0% PoE
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
-
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB
100% traffic / 50% PoE
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
-
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB
100% traffic / 100% PoE
Fanless
Fanless
Fanless
LWAd = 5.1 Bel LpAm (Bystander) = 35 dB
-
LWAd = 5.7 Bel LpAm (Bystander) = 41 dB
Aruba Instant On 1830 8G Switch
(JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch
(JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
(JL813A)
Aruba Instant On 1830 48G 4SFP Switch
(JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
(JL815A)
Electrical Characteristics
Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
AC voltage
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
Current
12V -- 1.0A
1.0A/0.5A
0.4A/0.3A
2.7A/1.4A
0.9A/0.6A
5.2A/2.6A
Maximum power rating
100-127V: 8.09W 200-220V: 8.05W
100-127V: 86.07W 200-220V: 83.67W
100-127V: 19.1W 200-220V: 19W
100-127V: 244.6W 200-220V: 237.2W
100-127V: 40.2W 200-220V: 40W
Popis produktu
Aruba Instant On 1830 48G 4SFP 370W Switch (24x RJ45 10/100/1000 24x Class4 PoE)Aruba Instant On 1830 8G Switch
(JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch
(JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
(JL813A)
Aruba Instant On 1830 48G 4SFP Switch
(JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
(JL815A)
I/O ports and slots
8 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
8 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
24 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports
24 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports
48 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP 1GbE ports
48 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP 1GbE ports
Physical Characteristics
Dimensions
157.0(d) x 173.0(w) x 39.1(h) mm
195.1(d) x 245.1(w) x 43.9(h) mm
215.9(d) x 443.0(w) x 43.9(h) mm
253.0(d) x 443.0(w) x 43.9(h) mm
253.0(d) x 443.0(w) x 43.9(h) mm
351.0(d) x 443.0(w) x 43.9(h) mm
Weight
1.70 lb (0.77 kg)
3.40 lb (1.54 kg)
5.50 lb (2.49 kg)
7.65 lb (3.47 kg)
7.80 lb (3.54 kg)
10.90 lb (4.94 kg)
Processor and Memory
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz,
512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
"RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
Aruba Instant On 1830 8G Switch
(JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch
(JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
(JL813A)
Aruba Instant On 1830 48G 4SFP Switch
(JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
(JL815A)
Performance
100 Mb latency
< 5.2 uSec
< 5.2 uSec
< 5.2 uSec
< 5.2 uSec
< 5.2 uSec
< 5.2 uSec
1000 Mb latency
< 2.8 uSec
< 2.8 uSec
< 2.8 uSec
< 2.8 uSec
< 2.8 uSec
< 2.8 uSec
10000 Mb latency
n/a
n/a
n/a
n/a
n/a
n/a
Throughput (Mpps)
11.90 Mpps
11.90 Mpps
38.68 Mpps
38.68 Mpps
77.37 Mpps
77.37 Mpps
Capacity
16 Gbps
16 Gbps
52 Gbps
52 Gbps
104 Gbps
104 Gbps
MAC address table size (# of entries)
8,000 entries
8,000 entries
16,000 entries
16,000 entries
16,000 entries
16,000 entries
Reliability MTBF (years)
188.2
105.9
203.6
96.6
114.4
83.5
Environment
Operating temperature
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
15% to 95% @ 104°F (40°C)
Nonoperating/ storage temperature
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
-40°F to 158°F (-40°C to 70°C)
Nonoperating/ storage relative humidity
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
15% to 95% @ 140°F (60°C)
Altitude
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
up to 10,000 ft (3 km)
Acoustics 1
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB
Notes: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
100% traffic
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB
100% traffic / 0% PoE
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
-
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB
100% traffic / 50% PoE
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
-
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB
100% traffic / 100% PoE
Fanless
Fanless
Fanless
LWAd = 5.1 Bel LpAm (Bystander) = 35 dB
-
LWAd = 5.7 Bel LpAm (Bystander) = 41 dB
Aruba Instant On 1830 8G Switch
(JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch
(JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
(JL813A)
Aruba Instant On 1830 48G 4SFP Switch
(JL814A)

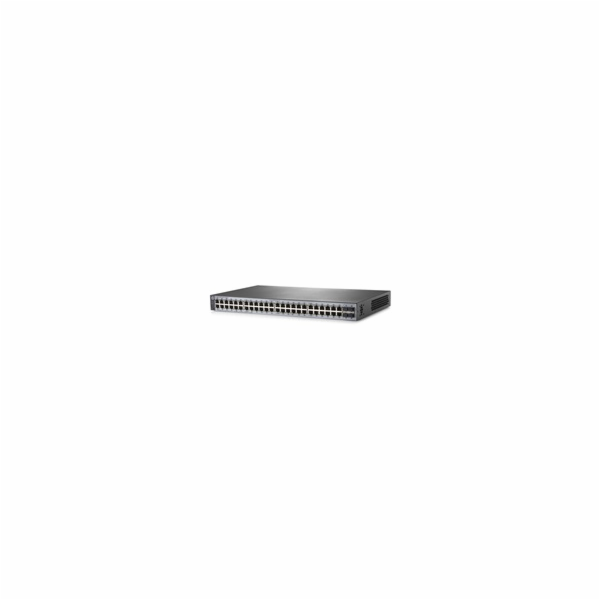

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
(JL815A)
Electrical Characteristics
Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
AC voltage
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
100-127VAC / 200- 240VAC
Current
12V -- 1.0A
1.0A/0.5A
0.4A/0.3A
2.7A/1.4A
0.9A/0.6A
5.2A/2.6A
Maximum power rating
100-127V: 8.09W 200-220V: 8.05W
100-127V: 86.07W 200-220V: 83.67W
100-127V: 19.1W 200-220V: 19W
100-127V: 244.6W 200-220V: 237.2W
100-127V: 40.2W 200-220V: 40W
Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
