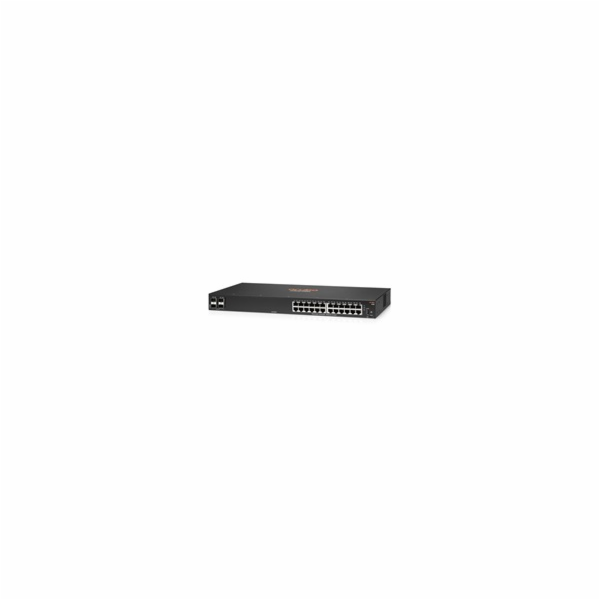

Aruba 6100 24G 4SFP+ Switch (JL678A)




Electrical Characteristics




Frequency


50 / 60 Hz




AC Voltage


100-127 VAC / 200-240 VAC




Current


0.6 A / 0.4 A




Power Consumption (230 VAC)


Idle: 15.4W Max Power (w/o PoE): 33W




Safety







UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-
1:2014




Emissions







VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 /
CISPR-32, Class A




Lasers







EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)




Immunity




Generic


CISPR 24 / CISPR 35




EN


EN 55024:2010 /
EN 55035:2017




ESD


IEC 61000-4-2




Radiated


IEC 61000-4-3




EFT/Burst


IEC 61000-4-4




Surge


IEC 61000-4-5




Conducted


IEC 61000-4-6




Power frequency magnetic field


IEC 61000-4-8




Voltage dips and interruptions


IEC 61000-4-11




Harmonics


EN 61000-3-2, IEC 61000-3-2




Flicker


EN 61000-3-3, IEC 61000-3-3




Mounting and Enclosure







Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting









Standards And Protocols (Applies to all products in series)

RFC 1591 DNS (client)
SSHv1/SSHv2 Secure Shell
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3at Power over Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 1350 TFTP Protocol (revision 2)
RFC 2131 DHCP client
RFC 4330 Simple Network Time Protocol (SNTP) v4
RFC 951 BOOTP (VLAN 1 Only)
RFC 1542 BOOTP Extensions (VLAN 1 only)
IGMPv2/IGMPv3
IGMP/MLD Snooping
RFC 1981 IPv6 Path MTU Discovery
RFC 2460 IPv6 Specification
RFC 2925 Remote Operations MIB (Ping only)
RFC 3315 DHCPv6 (client only)
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3176 sFlow
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP (Partially)
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 1213 MIB
RFC 1493 Bridge MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
(Partial support. MIB objects supported: ieee8021BridgeBasePort, ieee8021BridgeBasePort, ieee8021BridgePortMrpJoinTime, ieee8021BridgePortMrpLeaveTime, ieee8021BridgePortMrpLeaveAllTime)
RFC 2737 Entity MIB
RFC 2863 The Interfaces Group MIB
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 1098 A Simple Network Management Protocol (SNMP)
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
SNMPv1/v2c/v3
RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
RFC 1098 A Simple Network Management Protocol (SNMP)
RFC 2474 DiffServ precedence, with 2/4/8 queues per port
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2138 RADIUS Authentication
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)

---
