Popis produktu

Product Highlights




? Support up to 8GB DDR4-2666 cache

? SFF-9402 compliant connector pin-out

? Support read/write cache allocation by policy

? Support up to 24 NVMe drives using PCIe switch

? Redundant flash image for adapter availability

? UBM, SES2, SMP and SGPIO enclosure management



? Support up to (512) 12Gb/s SAS, SATA or SSD drives using SAS expanders

? Support optional cache backup module (CBM) protection using SuperCap

? Tri-mode interface at each drive ports-12Gb/s SAS/SATA/ Gen 4.0 PCIe (NVMe)

? Controller level hardware encryption and self-encryption drive management

? Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk

? Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100)

? Broad operating support including Windows, Linux, FreeBSD, macOS and VMware

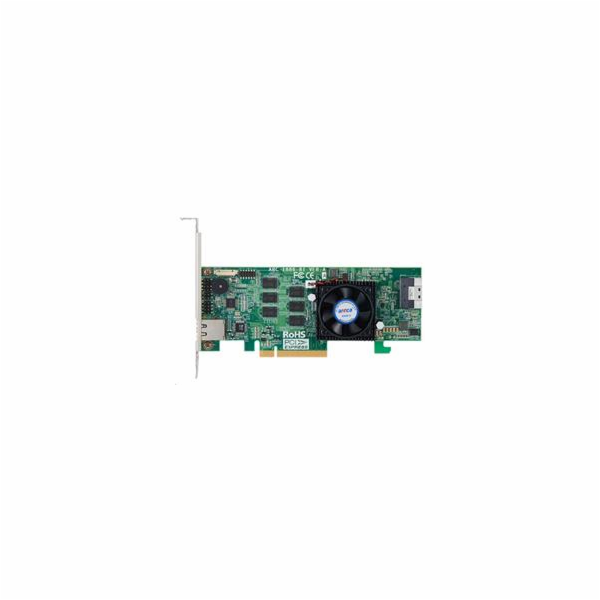

8/16 Ports PCIe Gen 4.0 Tri-Mode RAID Adapters




The new fourth generation ARC-1886 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.6 GHz dual core ROC processor, DDR4-2666 memory and PCIe 4.0 interface for the most performance-hungry database and IT applications. Based on the ARM A15 PCIe 4.0 x8 to SAS/SATA/PCIe RAID on Chip (ROC) controller, the ARC-1886 series RAID adapters can offer both PCIe Gen 4.0 host and 12Gb/s SAS/SATA/PCIe (NVMe) tri-mode storage interfaces.











ARC-1886 Series 8-Ports PCIe Gen 4.0 Tri-Mode RAID Adapters


ARC-1886-8i
ARC-1886-8x


Physical Dimensions
Low Profile: 167.65(L) x 64.4(H) mm


Ports
8 x internal
8 x external


Drive Connectors
1 x SFF-8654 [x8]
2 x SFF-8644 [x4]


Host Bus Interface
8-Lane PCI Express® 4.0


I/O Processor
Tri-Mode Dual Core ARM A15 1.6GHz ROC


Cache Memory
8GB on-board DDR4-2666 SDRAM with ECC Protection


Data Transfer Rate
Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port


Drive Support


Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander
Up to 24 NVMe drives through the PCIe switches




Power Consumption
Approximately 12 Watts


Operating Temperature
0 °C to 60 °C


Operating Humidity
10% to 85%, non-condensing


Cache Protection
ARC-1886-CBM










ARC-1886 Series 16-Ports PCIe Gen 4.0 Tri-Mode RAID Adapters


ARC-1886-8x8i
ARC-1886-16i
ARC-1886-4N8I


Host Bus Interface
8-Lane PCI Express® 4.0


Physical Dimensions
LP-MD2: 167.65(L) x 64.41(H) mm
205(L) x 107.2(H) mm


Ports
8 x internal & 8 x external
16 x internal


Drive Connectors
1 x SFF-8654 [x8]
2 x SFF-8644 [x4]
2 x SFF-8654 [x8]
1 x SFF-8654 [x8]
4 x M.2 Connectors


RAID-on-Chip Controller
Tri-mode Dual Core ARM A15 1.6GHz ROC


Cache Memory
8GB on-board DDR4-2666 SDRAM with ECC Protection


Data Transfer Rate
Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port


Drive Support


Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander
Up to 24 NVMe drives through the PCIe switches




Power Consumption
Approximately 14 Watts


Operating Temperature
0 °C to 60 °C


Operating Humidity
10% to 85%, non-condensing


Cache Protection
ARC-1886-CBM







RAID Features





RAID Levels - 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100)
Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
Multiple RAID selection
Configurable stripe size up to 1MB
Write-through or write-back cache support
Support read/write cache allocation by policy
Support HDD firmware update
Online array roaming
Online RAID level/stripe size migration
Online capacity expansion and RAID level migration simultaneously
Instant availability and background initialization
Support global and dedicated hot spare
Automatic drive insertion/removal detection and rebuilding
Support for native 4K and 512 byte sector SAS and SATA devices
Support UNMAP command
S.M.A.R.T. support
Multiple pairs SSD/HDD disk clone function
SSD automatic monitor clone (AMC)
Controller based hardware encryption function
SED (self-encryption drives) function support
Support backplanes based on the SFF-TA-1005 specification (UBM)
Redundant flash image for adapter availability
Support intelligent power management to save energy and extend service life
Support NTP protocol synchronize RAID adapter clock over the onboard Ethernet port






Operating Systems





Microsoft Windows
Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
FreeBSD
XenServer
unRAID
macOS
VMware ESXi






Management Monitor





 McRAID Storage Manager


Web-based GUI management utility
Remote configuration, monitoring, and notification
Graphical-based management utility




 McRAID Utility


Command-line interface
CIM provider for VMware
API code support




 McBIOS Configuration Utility


Legacy configuration utility
Flashable BIOS support




 Monitors/Notification


Global HDD activity/fault connector, individual fault connector
LCD/I²C connector and alarm buzzer
SNMP
SMTP

---
