Popis produktu

Elektr. napájecí zdroj: Síťový zdroj / přes USB
Typ 1: USB-A 2.0
Počet typu 1: 3x
Typ 2: USB-A 3.1
Počet typu 2: 1x
Typ 3: USB-C 3.1 Gen 2
Počet typu 3: 1x
Typ 4: VGA (DSUB 15)
Počet typu 4: 1x
Typ 5: HDMI
Počet typu 5: 2x
Typ 6: LAN (RJ45)
Počet typu 6: 1x
Typ 7: microSD
Počet Typů 7: 1x
Typ 8: SD
Počet Typů 8: 1x
Typ: 1x USB-C
Kontrolka: ano
Barva: černá / šedá

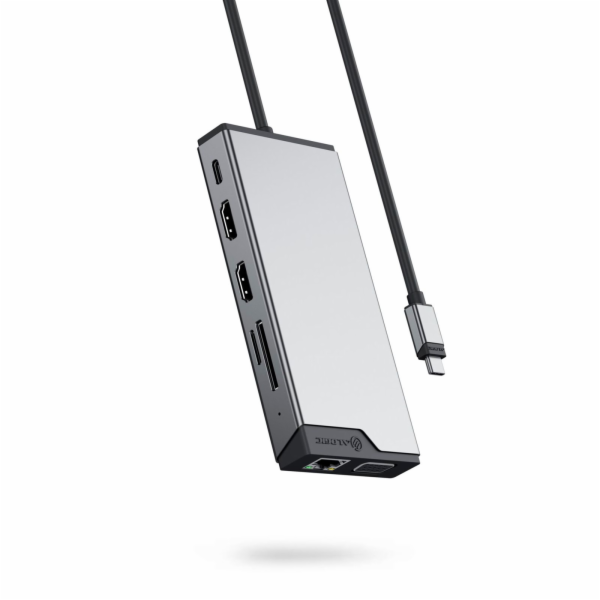

The Alogic USB-C PD DV3 Triple Display Docking Station offers a comprehensive solution for an efficient working environment with a total of twelve connection options. The robust ABS plastic housing combines functionality with a sleek design and fits seamlessly into any workspace.
Thanks to the integrated DisplayLink® technology, the DV3 docking station enables the connection of up to three screens with a single resolution of 1920x1080 at 60 Hertz via VGA and HDMI connections. The screen resolution can vary depending on the connection combination and the connected device.
The DV3 docking station offers numerous connection options: They include three USB-A 2.0 ports with a transfer speed of up to 480 Mbps, which are suitable for connecting peripheral devices. There is also a USB-A 3.1 port and a USB-C 3.1 port with a speed of 5 Gbps each. For screen expansion, the Alogic docking station offers a VGA port and two HDMI ports. An RJ45 Ethernet port and a MicroSD and SD card slot are also integrated into the triple docking station.
Power is easily supplied via the integrated USB-C cable, which can be connected directly to the laptop. Alternatively, the DV3 docking station can be operated via the USB-C PD input with an external USB-C PD power adapter, which supports USB PD 3.0 passthrough with up to 100 watts. An external power adapter offers an optimal option to enable the maximum output of 100 watts.
In addition, the included USB-A adapter makes it easy to connect older computers with a USB-A port to the DV3 docking station, which expands compatibility and usage options. It also has additional security functions such as the option to connect a security lock and an integrated LED indicator.
The 12-in-1 USB-C PD DV3 Triple Display Docking Station is compatible with Windows (7 to 11), as well as Vista, macOS and ChromeOS, offering enhanced connectivity to increase productivity and optimize the working environment.


Compact, multifunctional display docking station with twelve connection options for a productive working environment
Robust ABS plastic housing in a sleek design
Integrated DisplayLink® technology
Support for up to three Full HD screens with a resolution of 1920x1080 at 60 Hertz (depending on the respective model configuration and connection combination)
A total of twelve connection options:

3x USB-A 2.0 ports with a speed of up to 480 Gbps (suitable for peripheral devices)
1x USB-A 3.1 port with a speed of up to 5 Gbps (suitable for peripheral devices; backwards compatible with USB 2.0)
1x USB-C 3.1 port with a speed of up to 5 Gbps (suitable for peripheral devices; backwards compatible with USB 2.0)
1x VGA connection to the monitor with a single resolution of 1920 x 1080 at 60 Hertz (DisplayLink® software required)
2x HDMI connections to monitor with a single resolution of 1920 x 1080 at 60 Hertz (DisplayLink® software and USB-C device with support for DisplayPort video output required; resolution support depends on computer and model configuration)
1x RJ45 Ethernet port with a speed of up to 1 Gbps
1x SD card slot
1x microSD card slot
1x USB-C-PD input for external USB-PD power adapter, supports USB-PD 3.0 passthrough up to 100 watts (minus 8 watts of its own charging power for the docking station)


Connection option for security lock
LED indicator for easy condition
Compatible with ChromeOS, macOS, Windows 7/8/10/11, XP and Vista
What’s in the box: 1x DV3 USB-C docking station with USB-C plug, 1x USB-A adapter, 1x instruction manual
Dimensions: 127 x 60 x 16.5 millimeters
Weight: 150 grams
Note: A USB-C PD power adapter (100 watts) is not included in the scope of delivery.
