Popis produktu

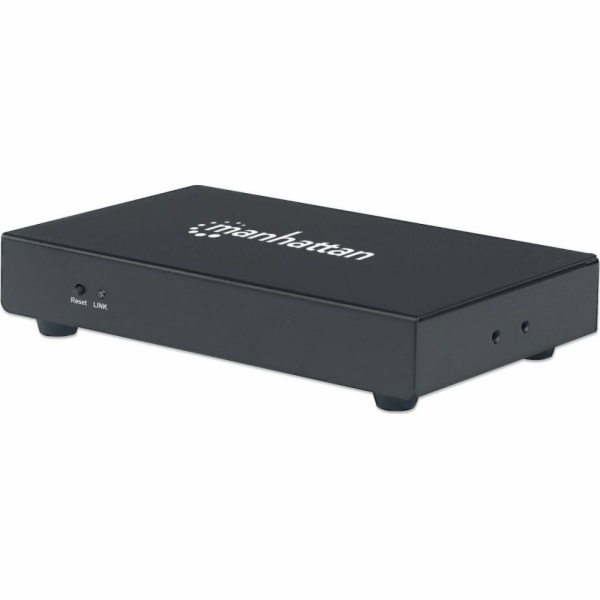

1080p 4-Port HDMI Extending Splitter Transmitter
Splits One Source to Four Outputs; Extends Signal up to 50 m (165 ft.), Single Ethernet Cable per Receiver, Video Bandwidth Amplifier, Black

Replicates and extends a High-Definition (HD) digital audio/video signal to up to four HD 1080p HDMI Extending Splitter Receivers (207836 ) at distances up to 50 m (165 ft.) using Ethernet cable
Supports 1080p resolution as well as HD 3D video and Deep Color (24-bits/pixel)
Integrated video bandwidth amplifier
Supports video-amplifier bandwidth of up to 1.65 Gbps (for 1080p)
Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
Fully HDCP compliant
This transmitting (Tx) unit requires at least one receiving (Rx) unit (207836) but connects up to four
AC powered with Plug and Play installation; no special setup or remote required
Plug-and-play installation
Gold-plated contacts for corrosion-free connections
Three-year warranty


TECHNICAL SPECIFICATIONS



Standards and Certifications
- HDCP 1.4a - CE - FCC - RoHS2


Package Contents
- 1080p 4-Port HDMI Extending Splitter Transmitter - Power adapter - Wallmounting brackets - Quick Instruction Guide


General


Source-to-splitter (TX) range
up to 15 m (49 ft.)


Cat6 cable
- 1080p at 50 m (165 ft.) - 720p at 60 m (200 ft.) - 480p at 80 m (264 ft.)


Receiver(RX)-to-display range
up to 15 m (49 ft.)


Power
12 VDC @ 1 A ; AC power adapter, 0.9 m (2.9 ft.)


Connections


Transmitter
One HDMI female, 19-pin (input) Four Ethernet female, RJ45 (output) One 5 VDC female, power (input)


Receiver (sold seperately)
One HDMI female, 19-pin (output) One Ethernet female, RJ45 (input) One 5 VDC female, power (input)


Signal Input/Output


Input video signal
400 - 600 mV


Input DDC signal
5 V p-p (TTL)


Maximum single-link range
1.65 Gbps and 1080p resolution


Output video
HDMI 1.3, HDCP 1.4a


Frequency
1.65 Gbps / 165 MHz


Video Resolutions


DTV/HDTV
480i/480p/576i/576p/720p/1080i/1080p


Physical


LED indicators
power and port connection


Power adapter
12 VDC / 1 A; 0.9 m (2.9 ft.)


Dimensions
162 x 100 x 25 mm (6.4 x 3.9 x 1 in.)


Weight
0.43 kg (0.95 lbs.)


Housing
metal


Operating Environment


Operation Temperature
0 – 40°C (32 – 104°F)


Storage Temperature
-20 – 60°C (-4 – 140°F)


Humidity (noncondensing)
0 – 96%

---
